AirGap Eaves

• Fasteners (mechanical attachment) should be galvanized corrosion-protected staples (140/10) or roofing nails at least 25 x 2.5 mm.
• For optimal air tightness, the joints are taped in overlap with sealing tape T-Flex.

• Storage and warehousing should always be protected from precipitation.
• The wind deflectors are moisture-repellent, but precipitation and adverse weather conditions during and after installation should be avoided.

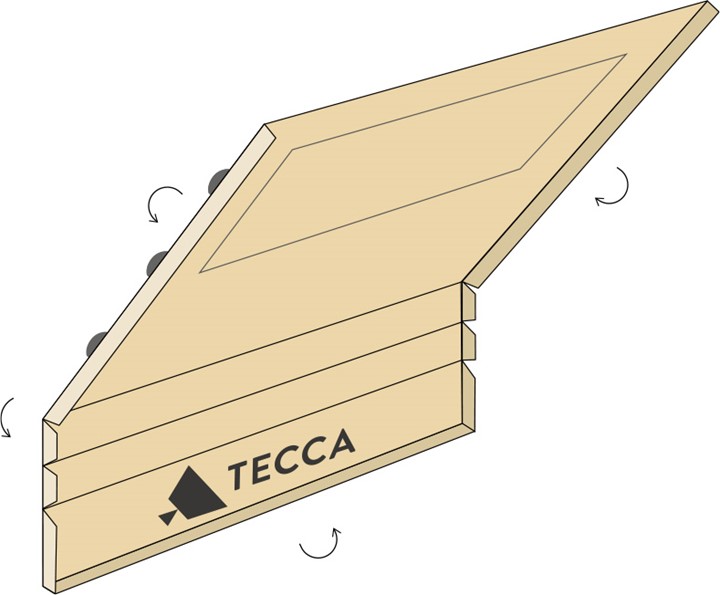

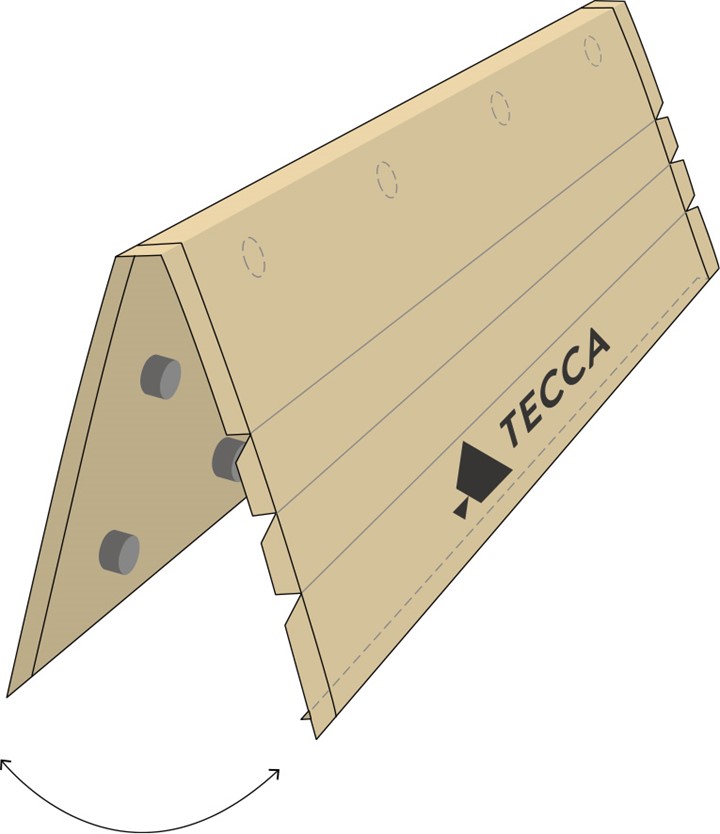

SE Adjust the folding (A) so that the spacers meet the roof underlayment.

NO Adjust the folding (A) so that the spacers meet the roof underlay.

EN Adjust the fold (A) so that the spacers meet the roof underlayment.

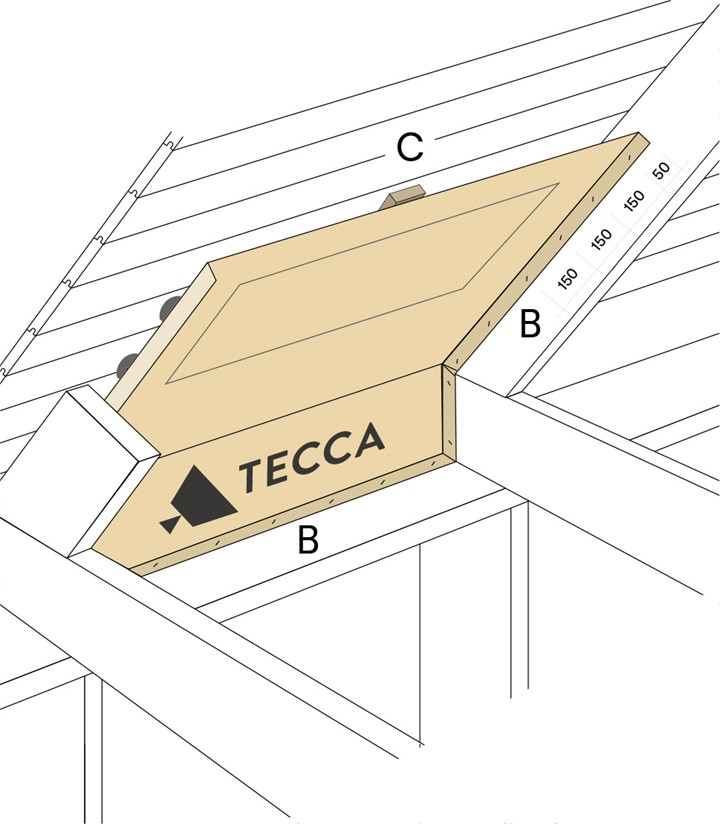

SE Fastening (B): Corrosion-protected Rapid 140/10 (or equivalent) alternatively galvanized roofing nail 25 x 2.5 mm. Fixation (C): For c1200, finish with a screwed wooden block that the board is clamped against. Alternatively, without a wooden block, only screwed through one of the two middle spacers at the top edge. Choose a screw with a larger head and a length of 40-45 mm.
(Note! The screw must not go through the roof underlay!)
NOTE! When the underlay fabric is hanging, end the spacers at the lowest point of the fabric!

NO Fastening (B): Corrosion-protected Rapid 140/10 (or equivalent) or galvanized roofing nails at 25 x 2.5 mm. Fixation (C): For c1200, you finish with a screwed wooden block that the plate is clamped against. Alternatively, without a wooden block, just screw through one of the two middle spacers at the top edge. Choose a screw with a larger head and a length of 40–45 mm.
(Note! The screw must not go through the roof underlayment!)
NOTE! If a hanging underlay is used, end the spacers at the lowest point of the fabric.

EN Mounting (B): Corrosion-resistant Rapid 140/10 (or equivalent) or 25 x 2.5 mm galvanised roofing nails. Fixation (C): For c1200, finish with screwed wooden blocks to which the disc is clamped. Alternatively, without a wooden block, simply screw through one of the two middle spacers at the top edge. Choose a screw with a larger head and a length of 40-45 mm.
(Note: The screw must not penetrate the roof underlayment!)
Note: In the case of a hanging underlayment, finish the spacing at the lowest point of the underlayment!

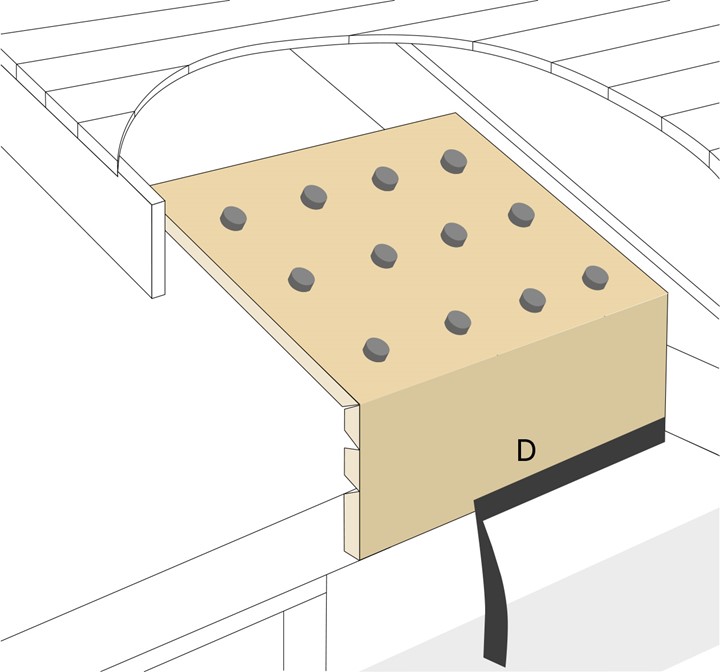

SE Joint Taping (D): Sealing tape T-Flex for outdoor use.

NO Joint tape (D): Sealing tape T-Flex for outdoor use.

EN Splice taping (D): T-Flex sealing tape for outdoor use.
