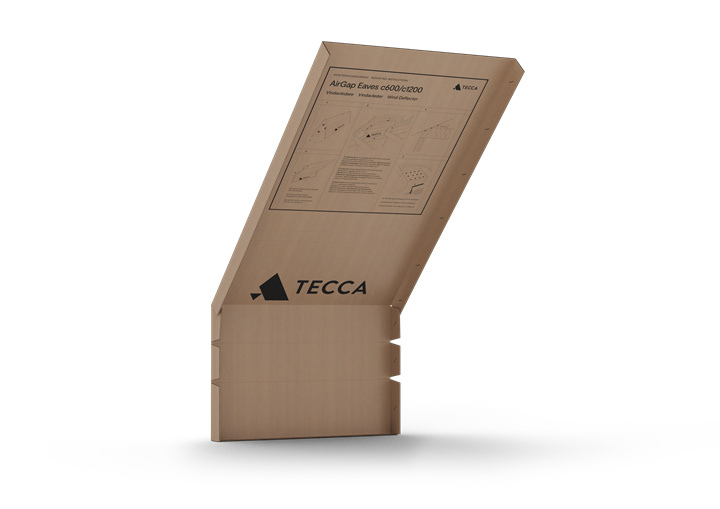

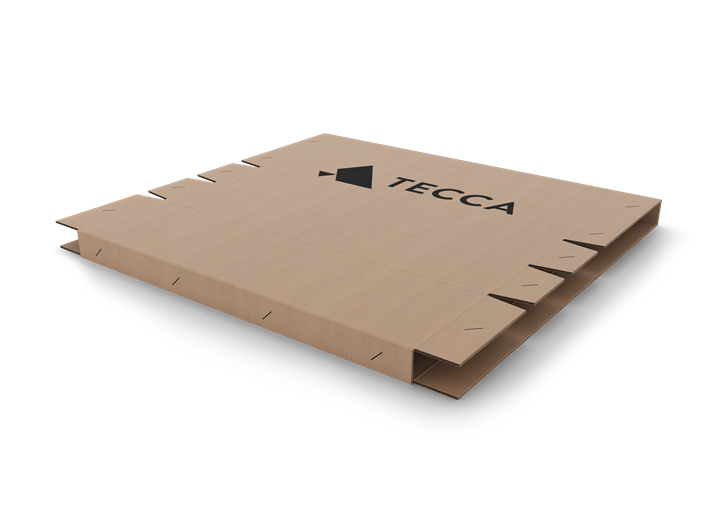

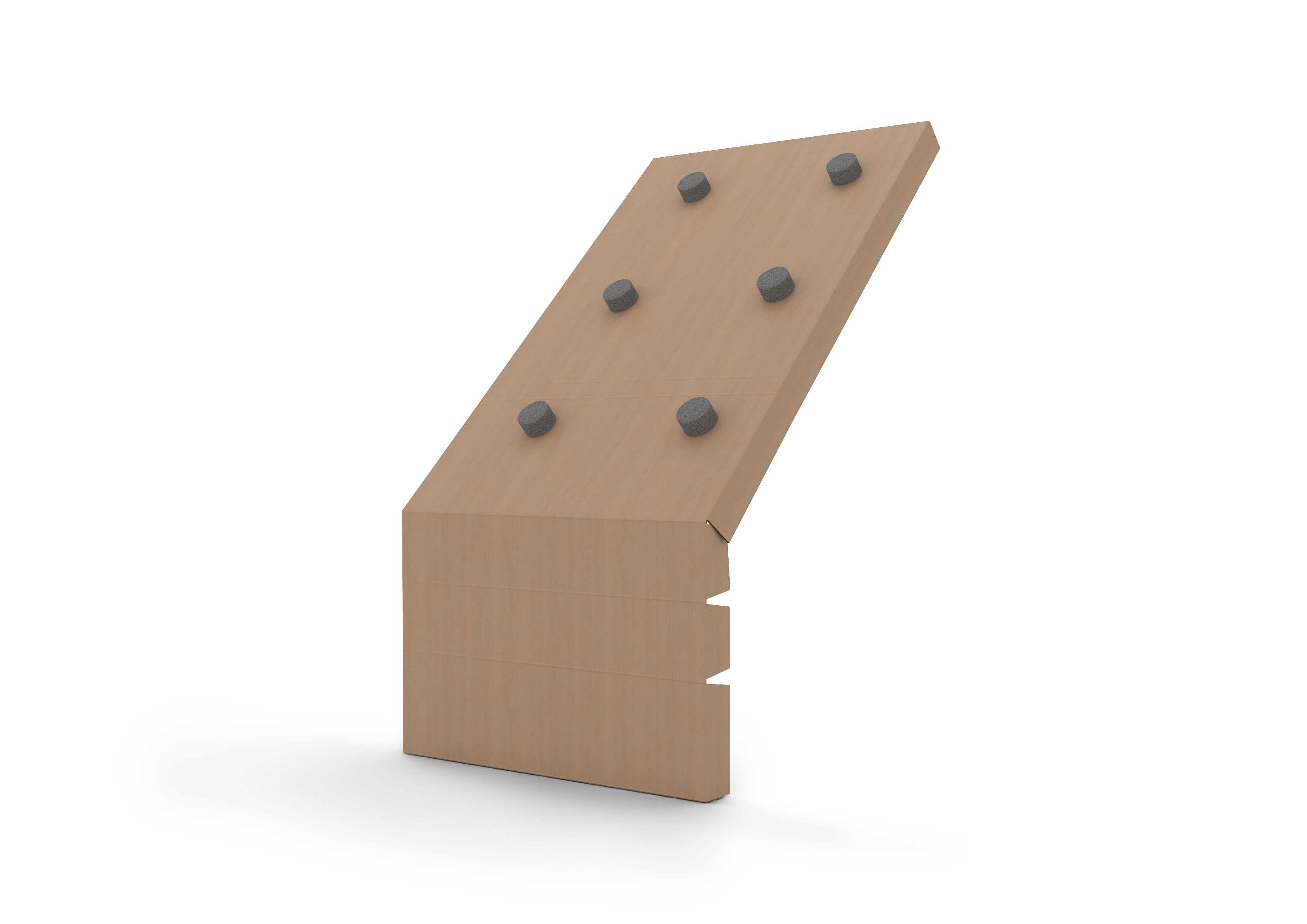

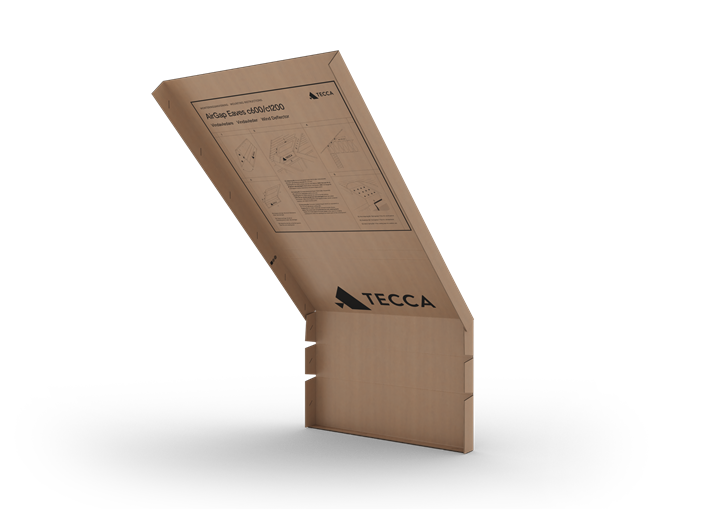

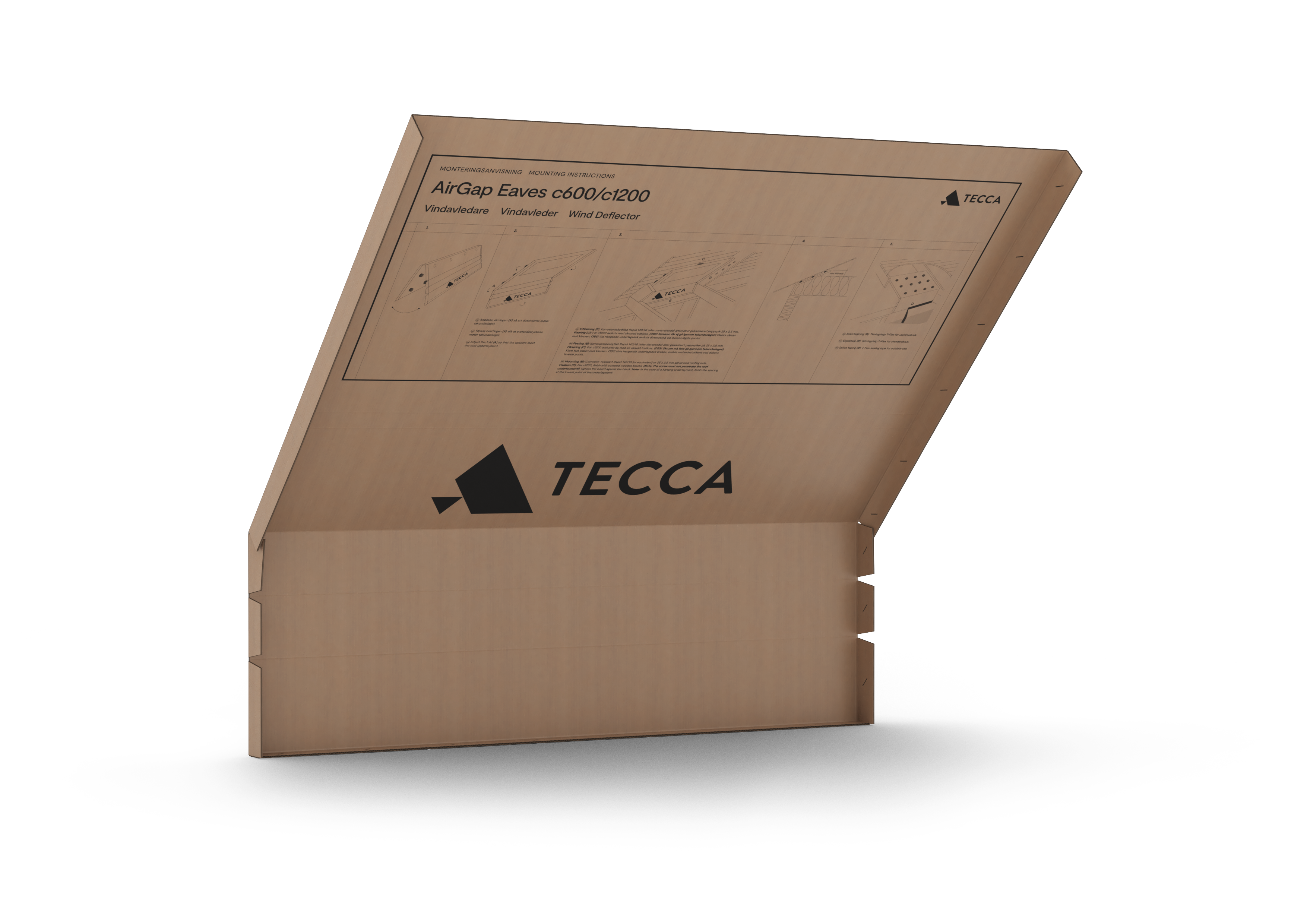

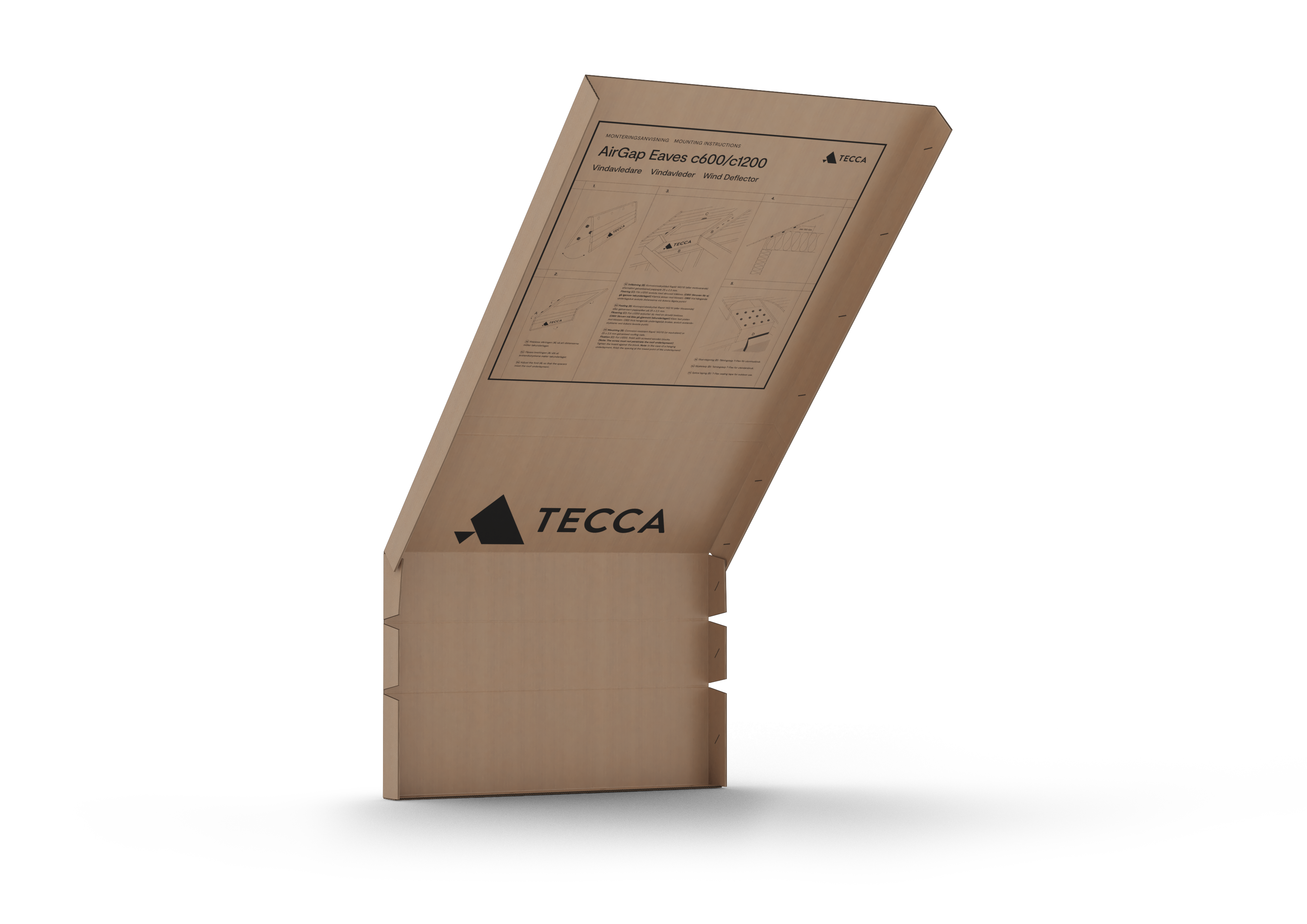

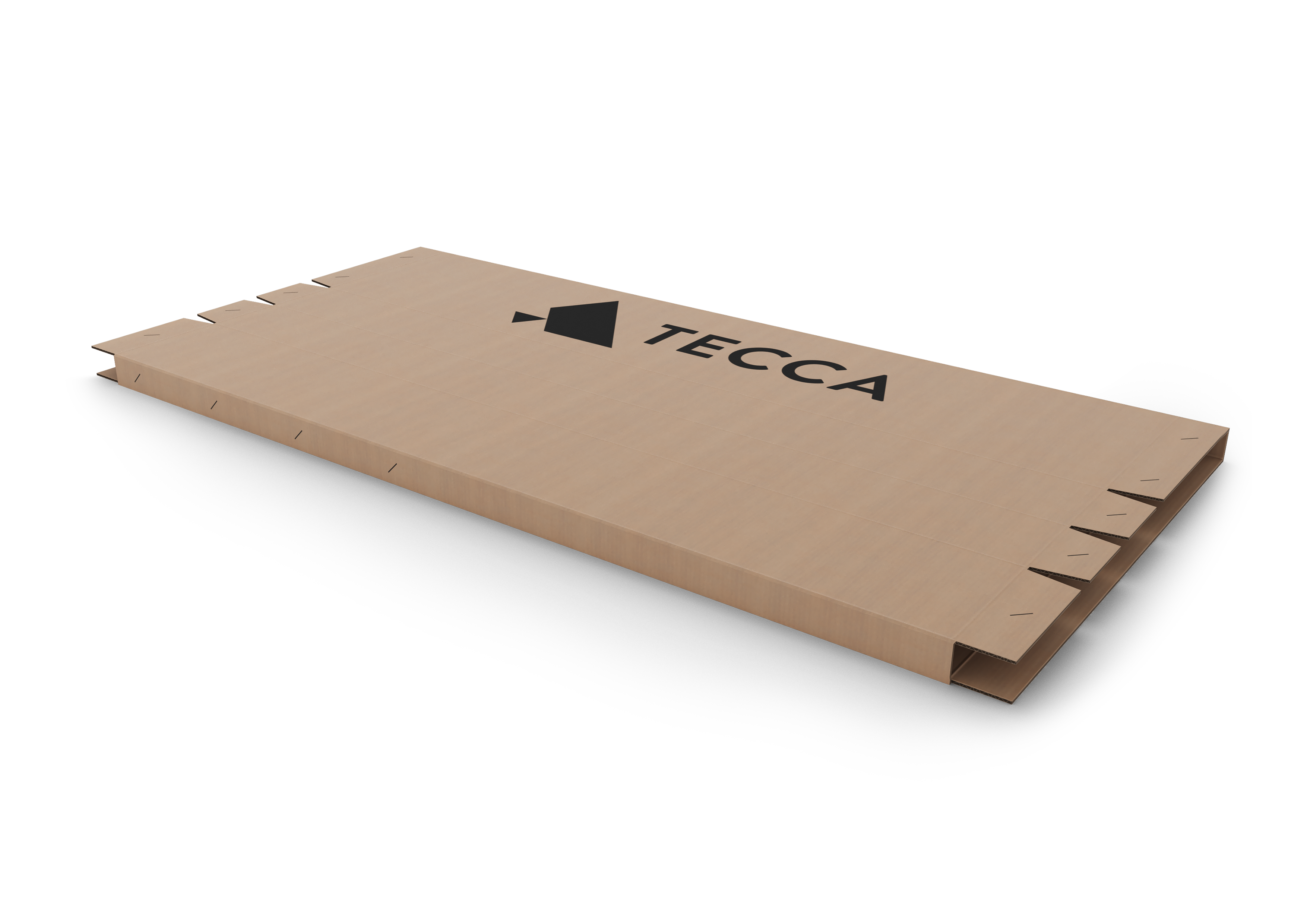

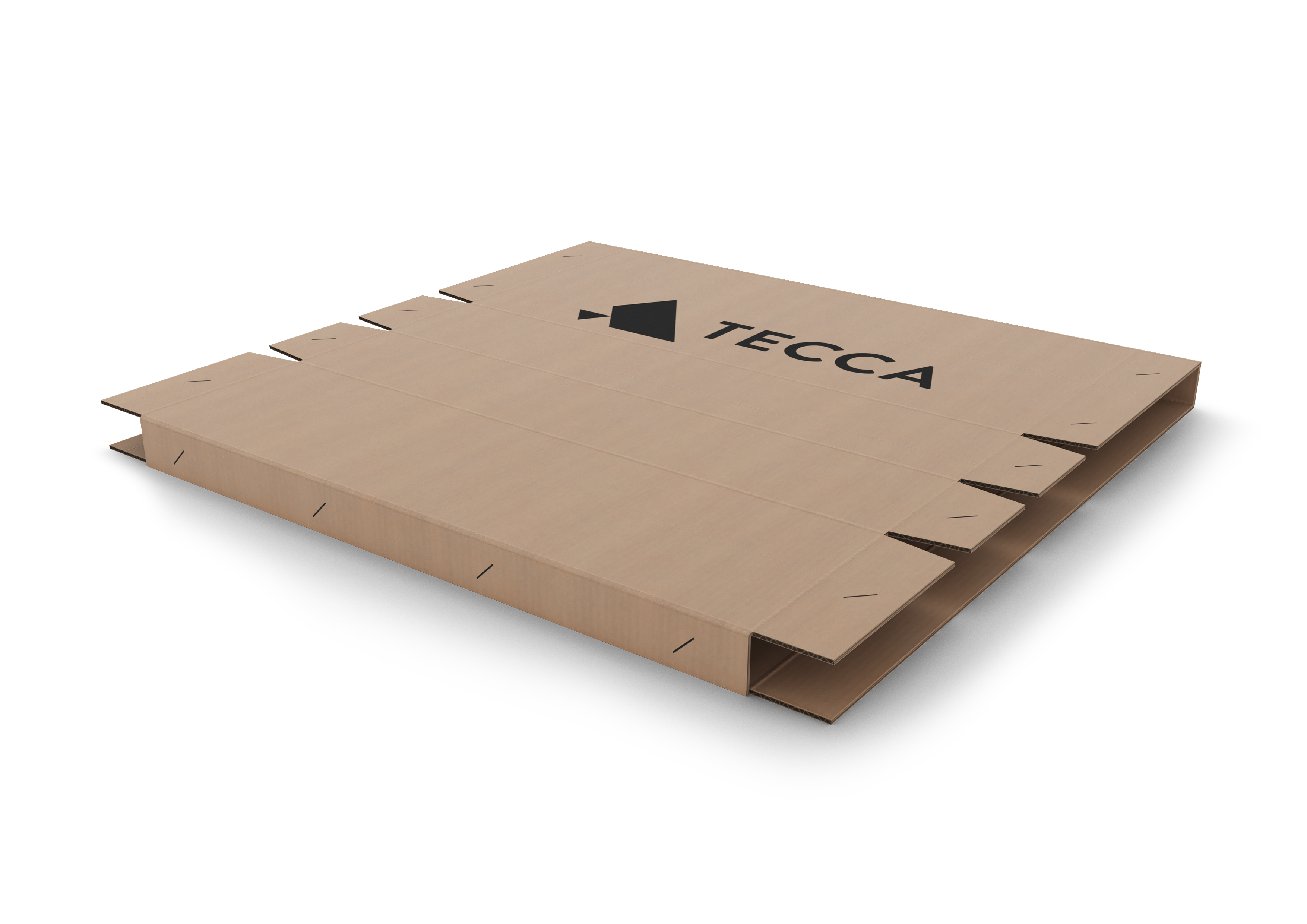

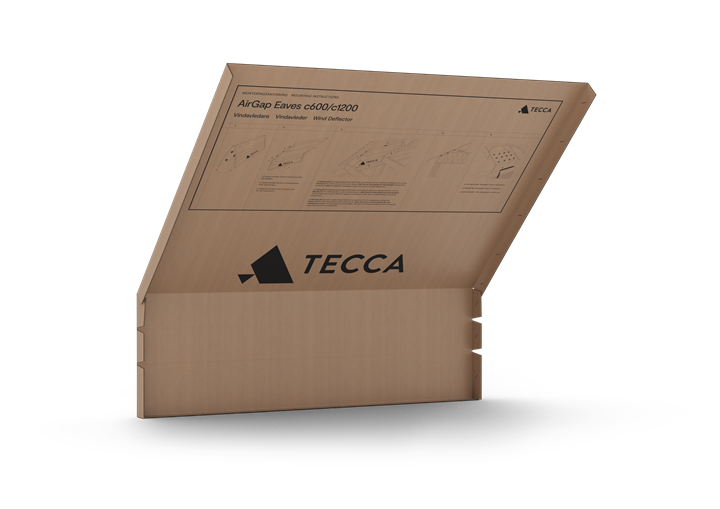

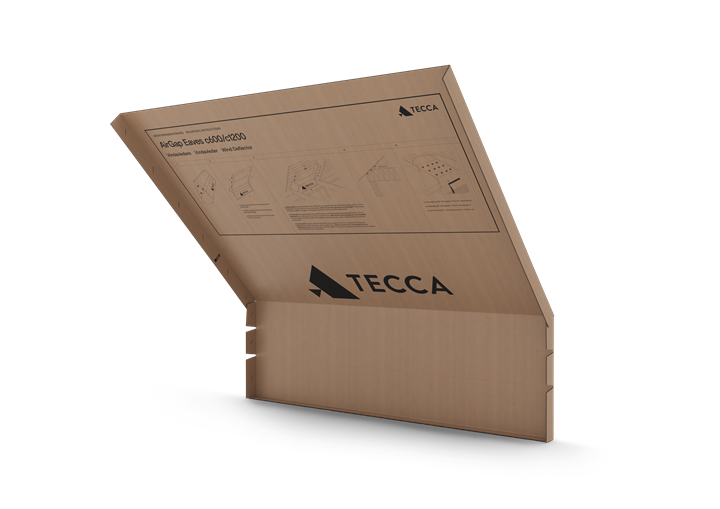

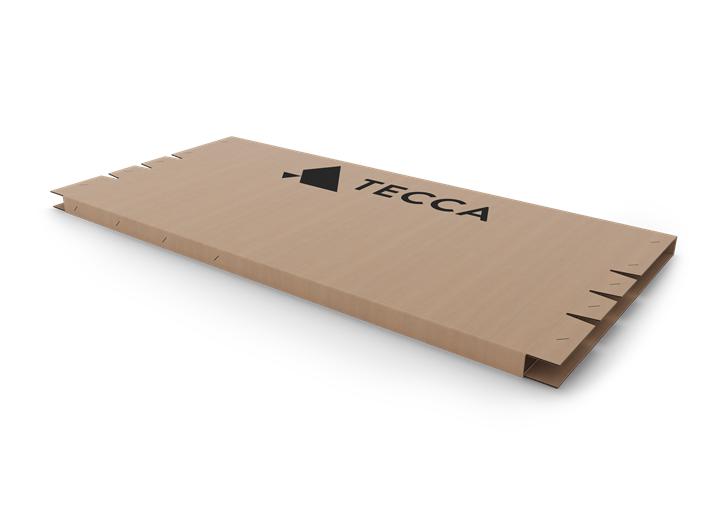

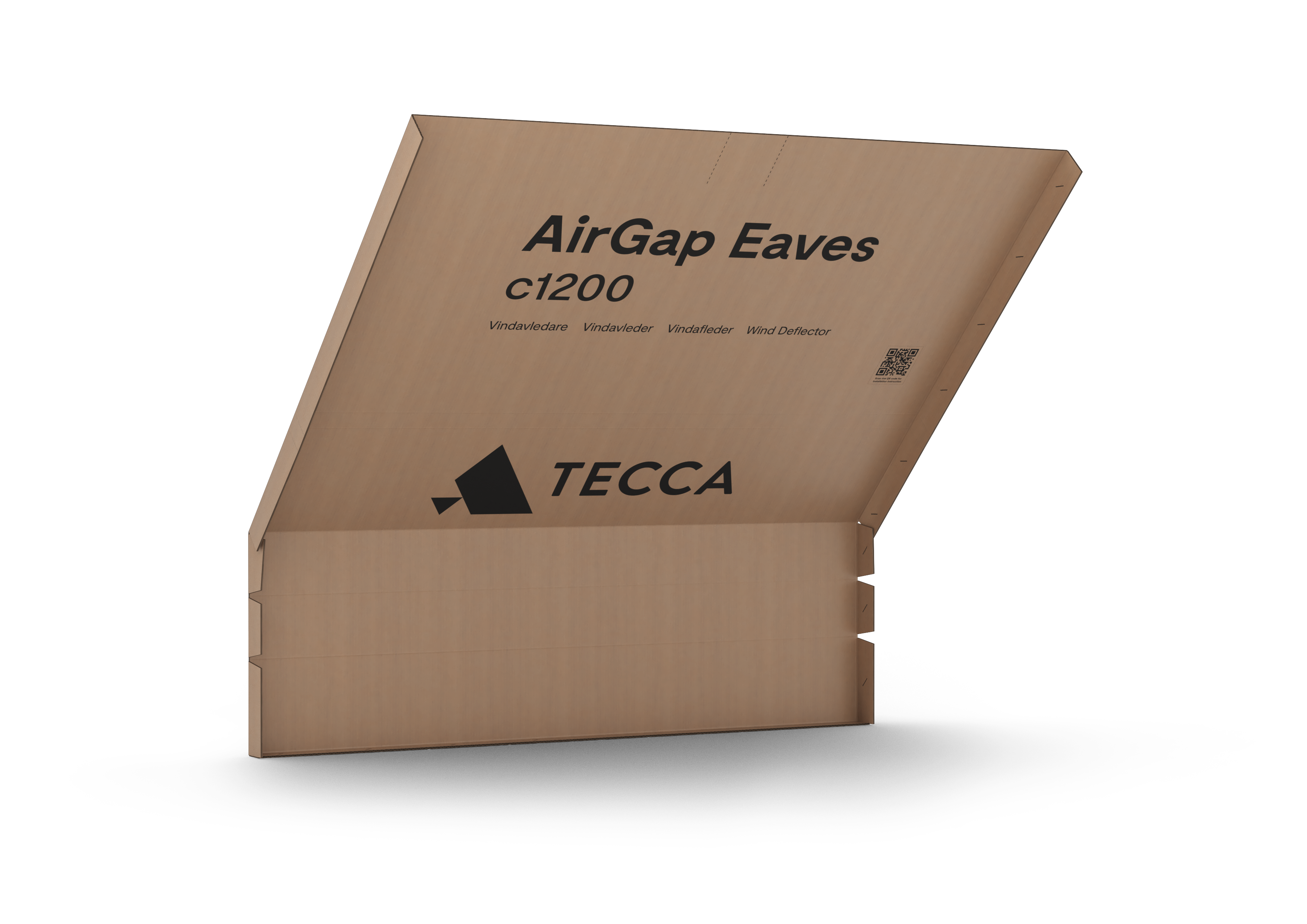

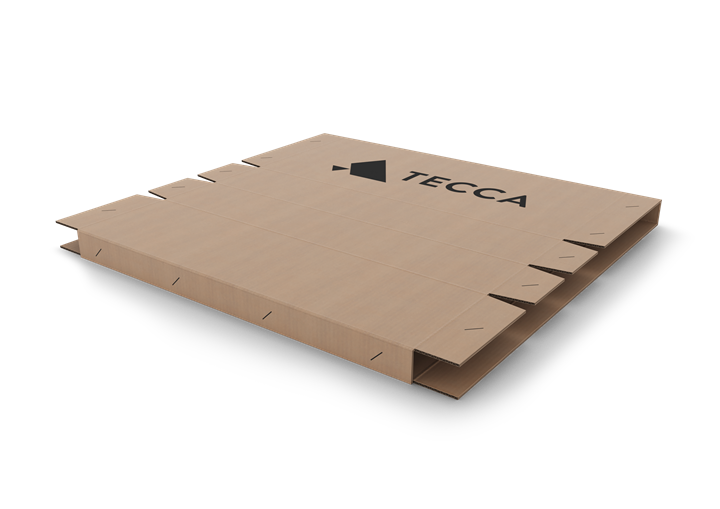

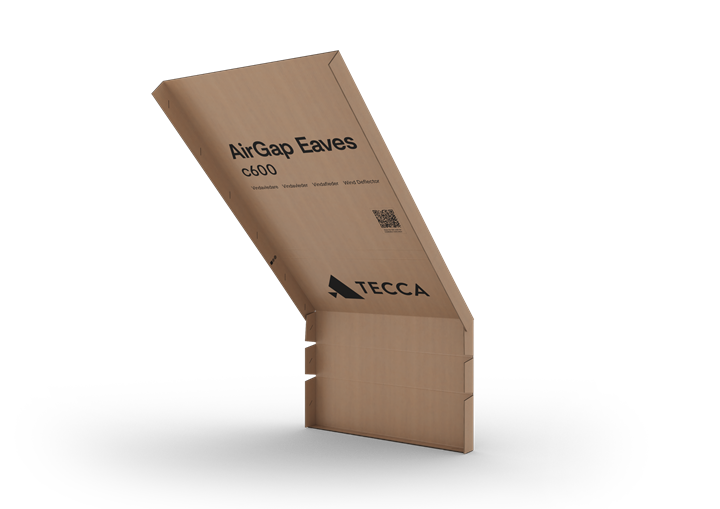

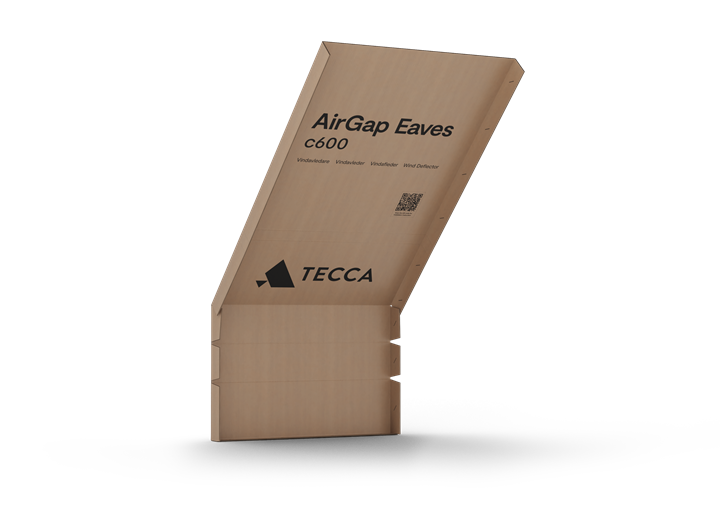

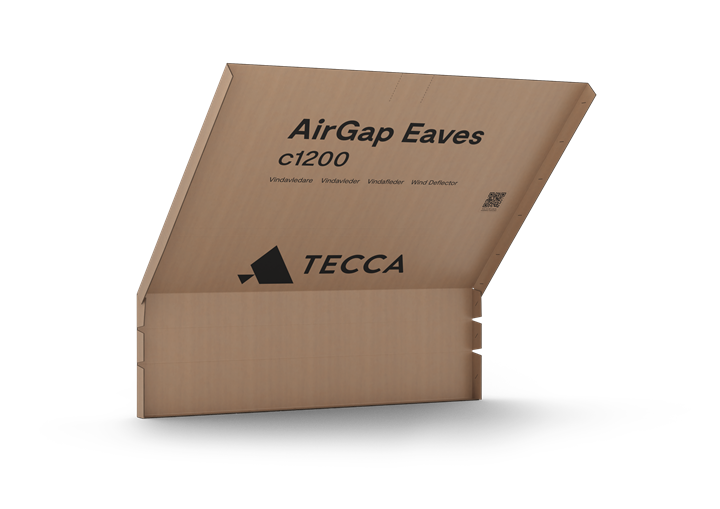

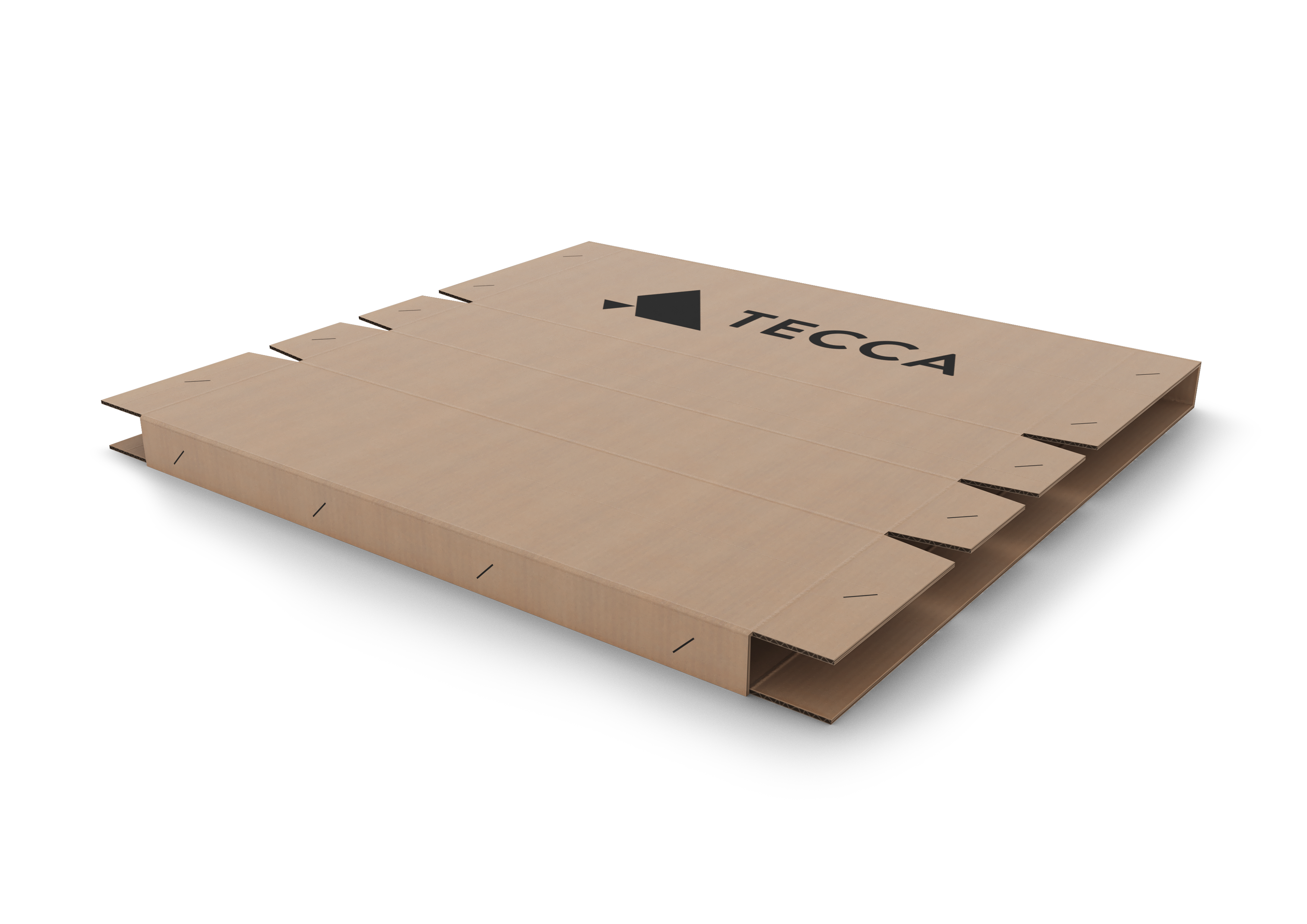

AirGap Eaves

Fuktskyddande vindavledare av specialwell med vindskyddande egenskaper för isolering i takfoten. Skivan är diffusionsöppen, fuktavstötande och försedd med distanser som säkerställer ventilationsspalten och ventilationen vid takfoten. Vindavledare är en del i ett system med produkten luftspaltsskiva där de båda produkterna kan användas tillsammans alternativt enbart vindavledare. Det är takkonstruktionens utformning som avgör.

Biobaserat material
Enkel montering
Fuktavstötande
System solution

Find dealer Högupplösta bilder

Design

Quantity

Unit

Price/unit

Prisinformation

Buy

Product Information

Application Area

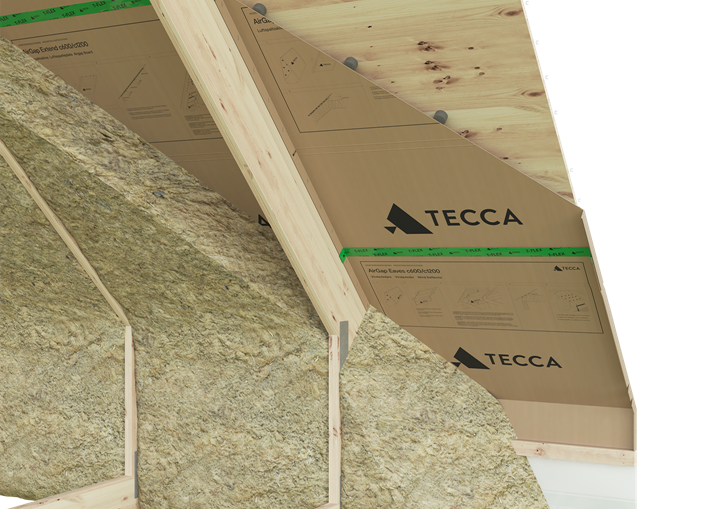

The product is used as an external climate shield from the top of the wall to the upper edge of the attic beam layer's insulation. In conjunction with an air gap board, a longer ventilation gap can be created for, for example, parallel roofs.

For low-sloped roofs, less than 14° (1:4), the board with a 50 mm distance is recommended.

Installation

The wind deflector is mounted directly onto the roof underlay. The fastening is done between the rafters/roof beams using corrosion-protected staples (140/10) or roofing nails (minimum size 25 x 2.5 mm). See the installation instructions for details.

Important!

Fasteners (mechanical attachment) should be galvanized corrosion-protected staples (140/10) or roofing nails at least 25 x 2.5 mm.
For optimal air tightness, the joints are taped in overlap with sealing tape T-Flex.
Storage and warehousing should always be protected from precipitation.
The wind deflectors are moisture-repellent, but precipitation and adverse weather conditions during and after installation should be avoided.

Den här produkten ingår i TESHELL® och omfattas av vårt garantiprogram. Read more here

This product is evaluated and registered with the following entities:

Declared item in Supply Chain Declaration Portal (SCDP) for New buildings gen. 4.
Registered in the Swan's house product portal

Articles

Name Art.nr Specification

Documents

Specification

Technical specification

Product type: Corrugated Wind Deflector
Installation: Mechanical fastening
Length: 1240 mm
Effective length: 1200 mm

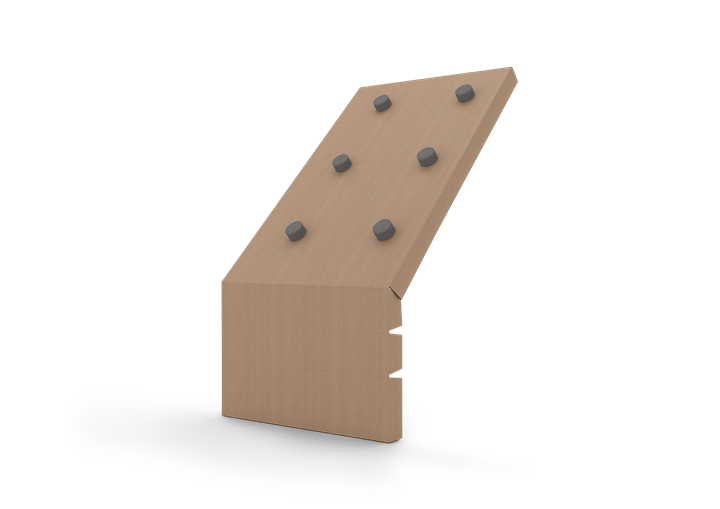

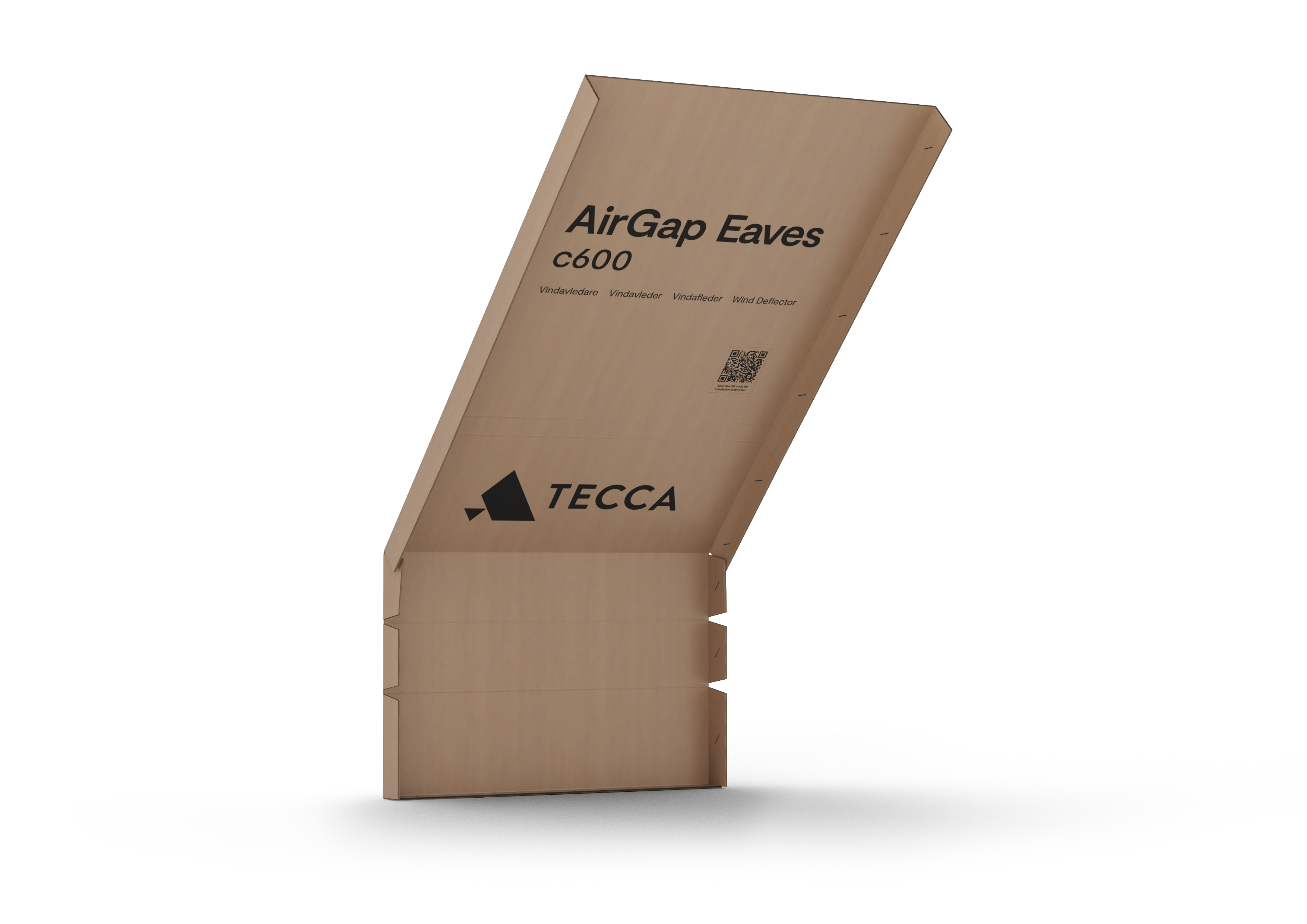

Customised width: 1155 mm (c = 1200 mm) or 555 mm (c = 600 mm)

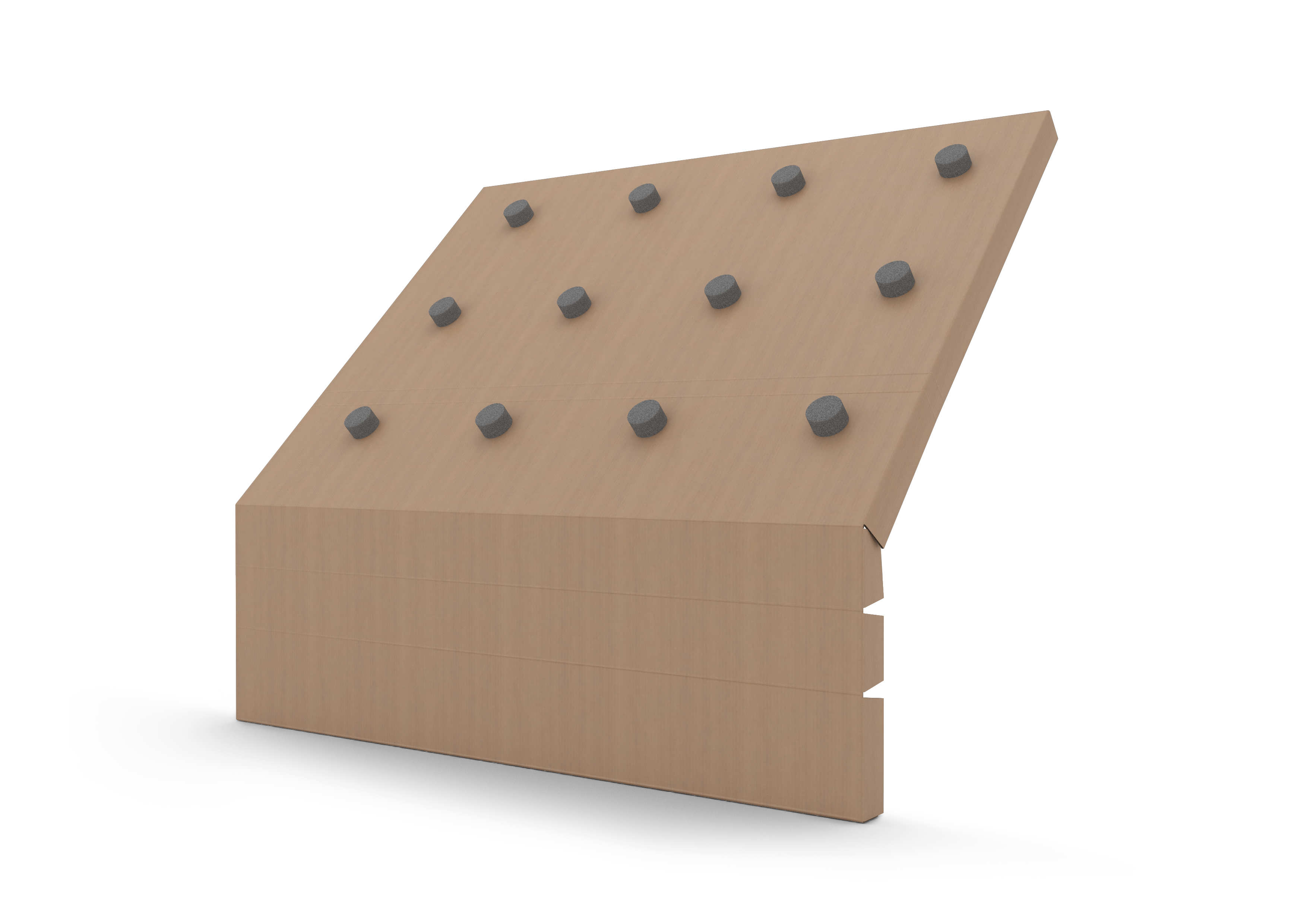

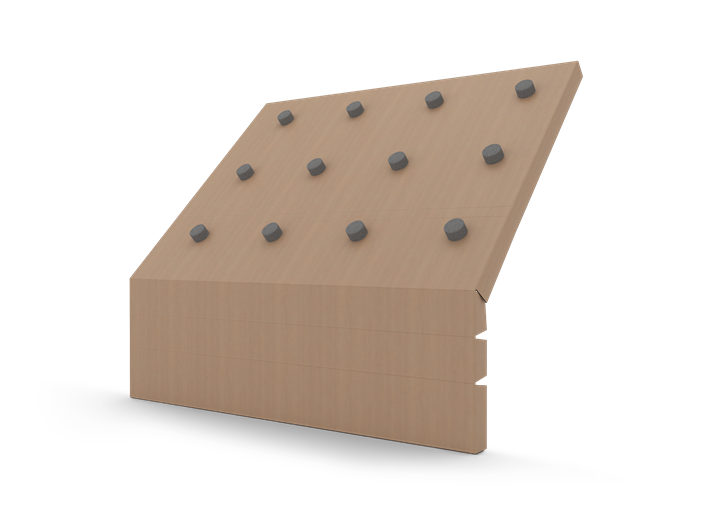

Ventilation gap: 30 mm alt. 50 mm
Air gap area (30 mm distance): approx. 0.03 m²/compartment (at approx. 1200 mm) or 0.015 m²/compartment (at approx. 600 mm)
Air gap area (50 mm distance): approx. 0.05 m²/compartment (at c1200 mm) or 0.025 m²/compartment (at c600 mm)
Vapor tightness (approx.): 3900 s/m
Water Resistance: Slightly water-repellent
Package Size: 20 pcs (30 mm distance) 13 pcs (50 mm distance)
