Important!
- T-Butyl Joint Tape is used as a splicing aid, for extra sealing, or for repairs.
- The ventilation and air exchange of the crawl space should be outdoor air ventilated and is assumed to be according to standard practice.
- The function as a radon barrier is based on normal risk areas and the Swedish National Board of Housing, Building and Planning's requirement of a maximum of 200 Bq/m.
- For the installation of a radon barrier, also carefully consider the accompanying document "Details for installation as a radon barrier".”
- Storage should be protected from sunlight (UV radiation) and higher temperatures (>+35°C) as this shortens the lifespan.

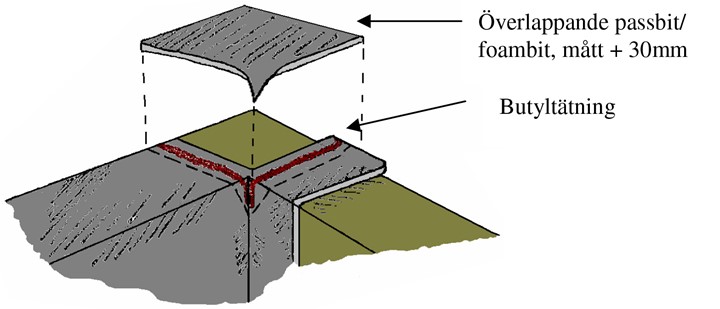

1. Filler piece upper corner foundation wall

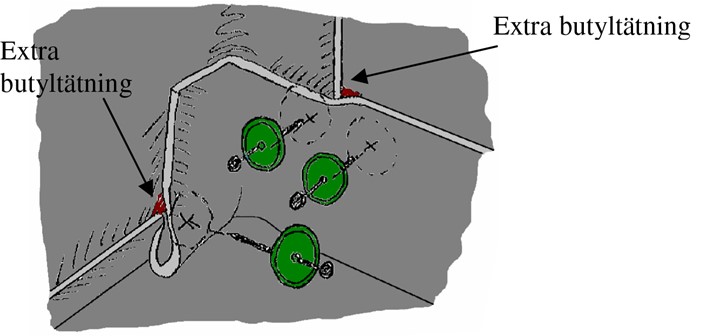

2. Joint lower inner corner foundation wall

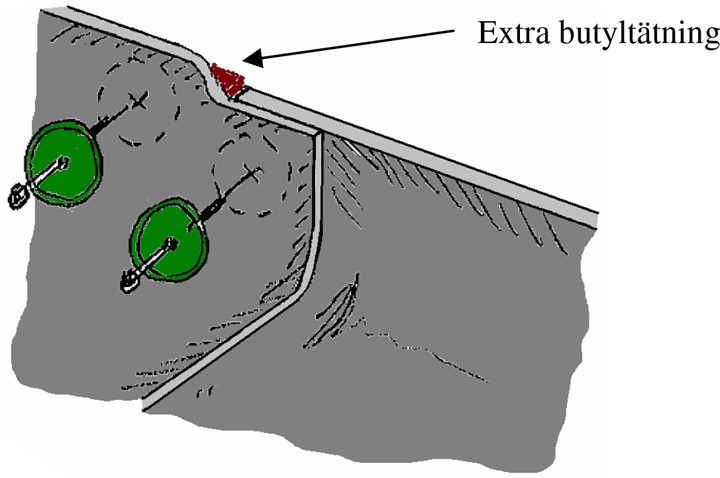

3. Overlap joint with bottom fold-up

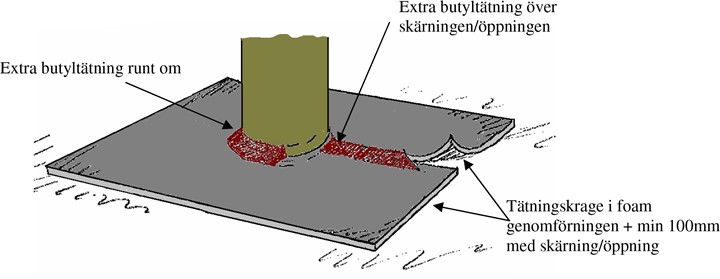

4. Seals at pass-throughs
5. Ventilation openings
Possible assembly reinforcement where needed.

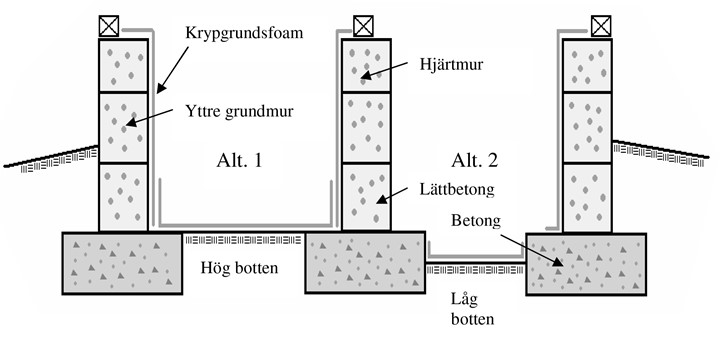

6. Schematic drawing of crawl space in lightweight concrete with concrete base and heart wall (two options)
