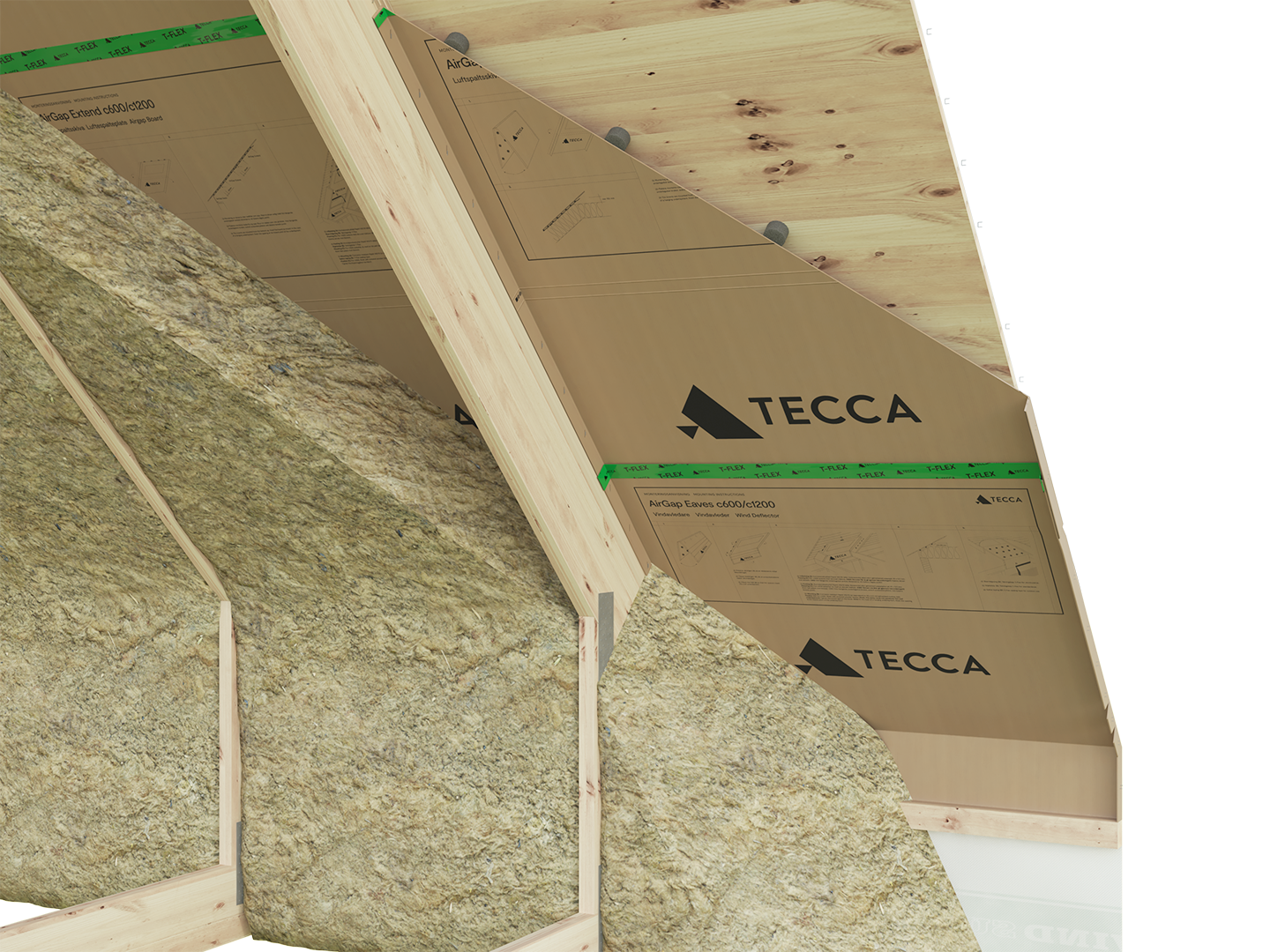

Roof wind protection with wind deflector and air gap board

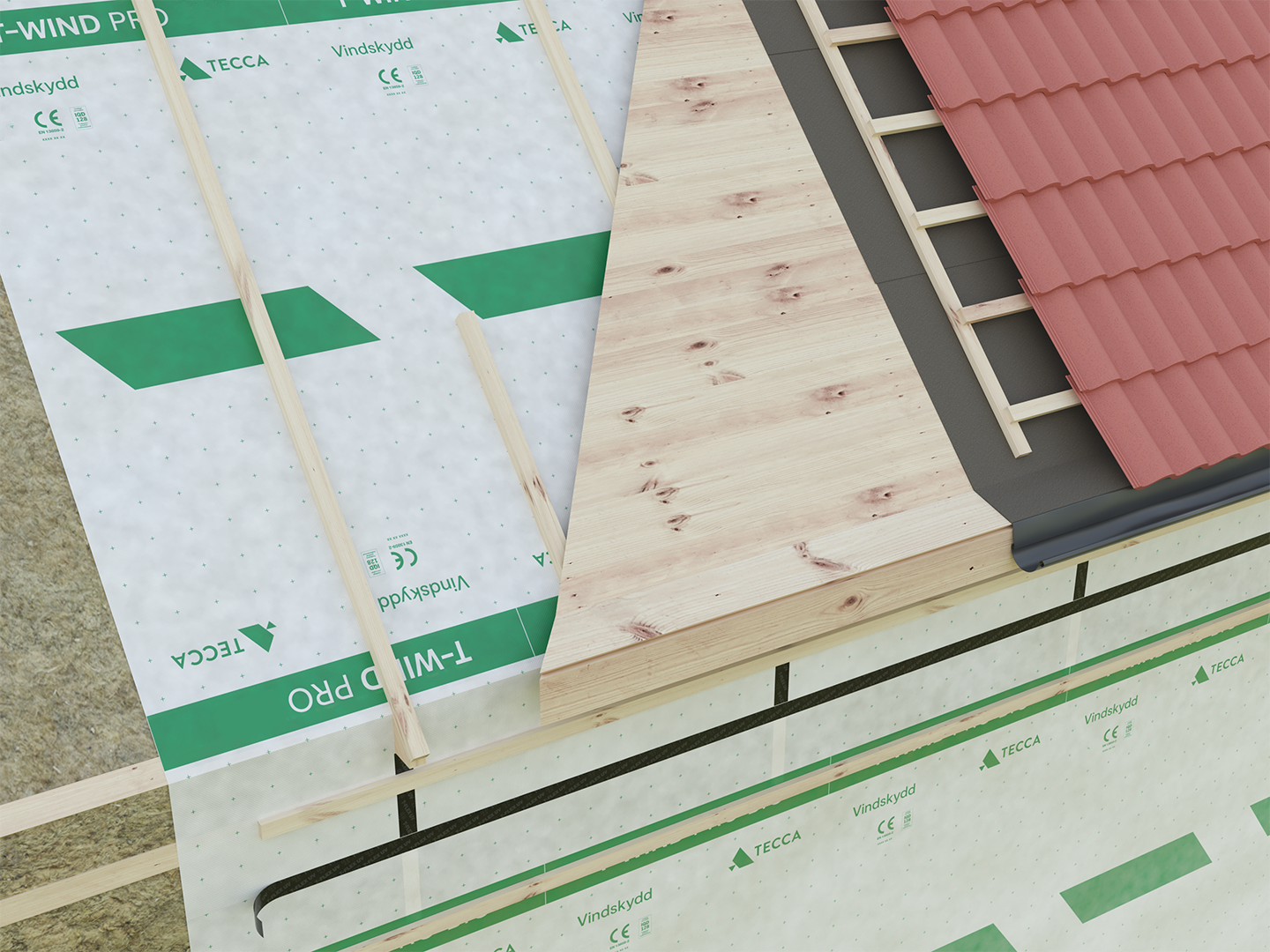

The system creates a windproof and vapor-permeable shell for the external climate screen roof, but also forms an air gap against the roof's wooden substrate. The design and material selection of the products provide advantageous strength and easy installation.
Products in system solution

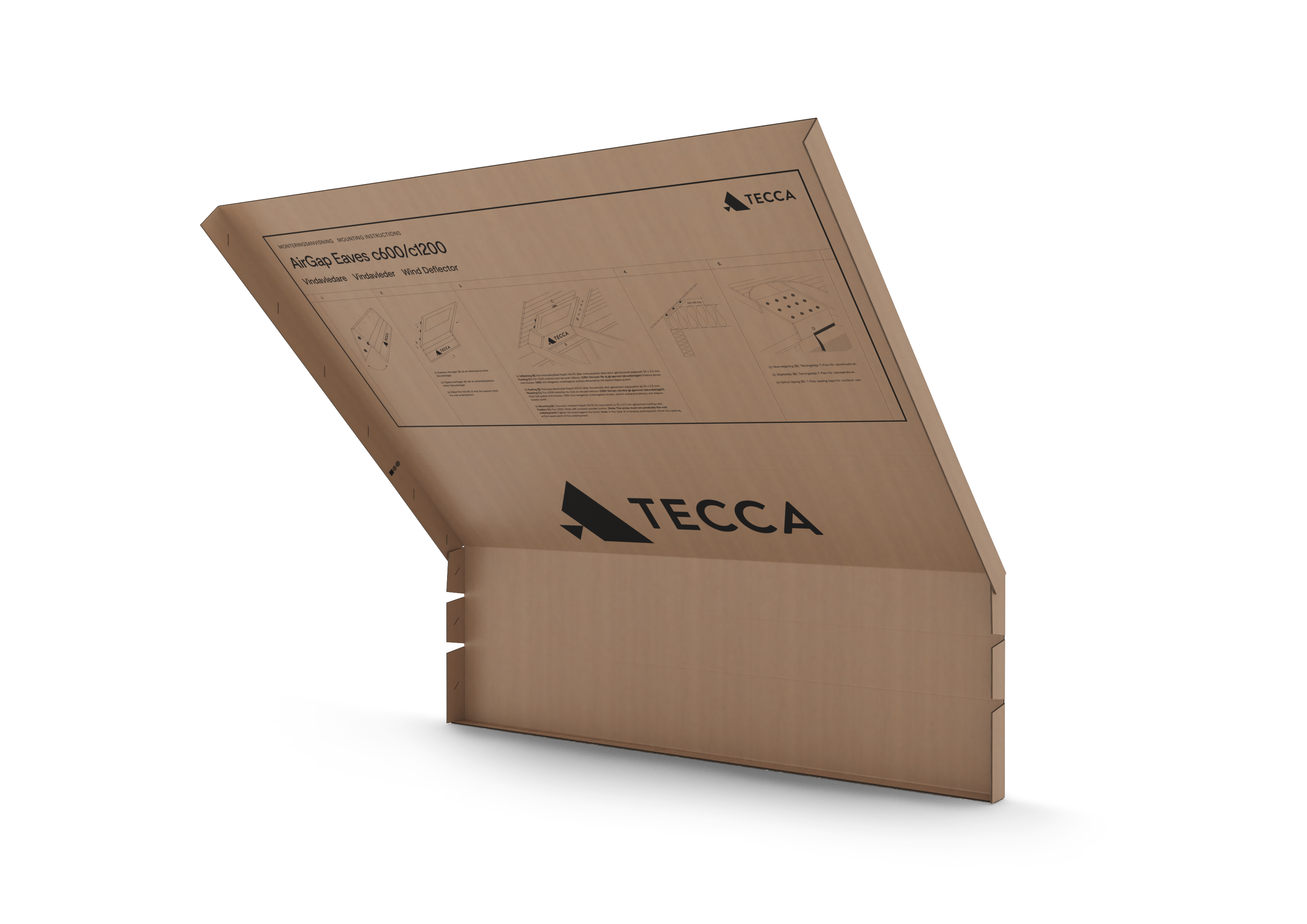

Moisture-protective wind deflector made of special corrugated material with wind-protective properties for insulation in the eaves. The board is diffusion-open, moisture-repellent, and equipped with spacers that ensure the ventilation gap and ventilation at the eaves. The wind deflector is part of a system with the product air gap board where both products can be used together or alternatively just the wind deflector. It is the design of the roof structure that determines.

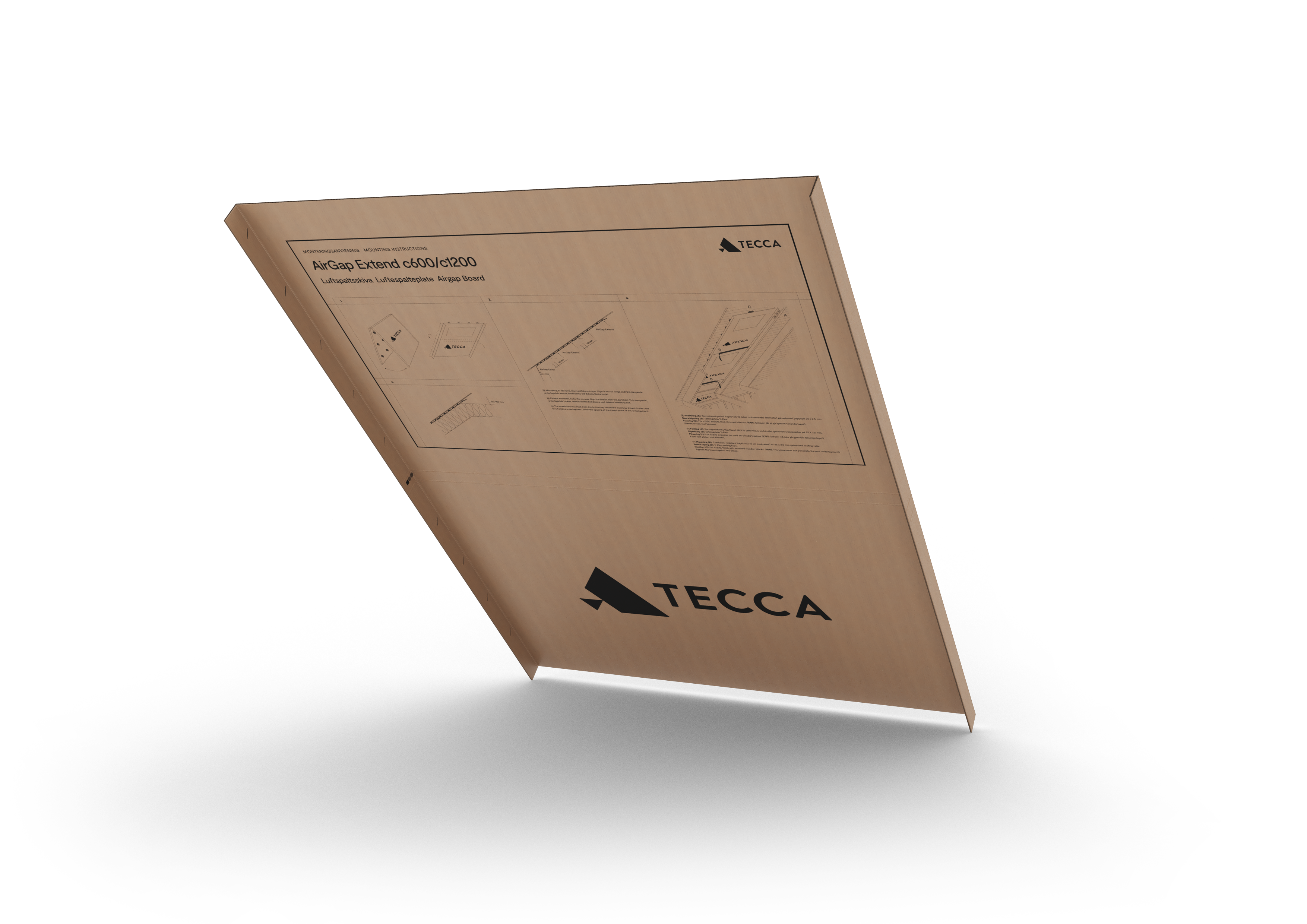

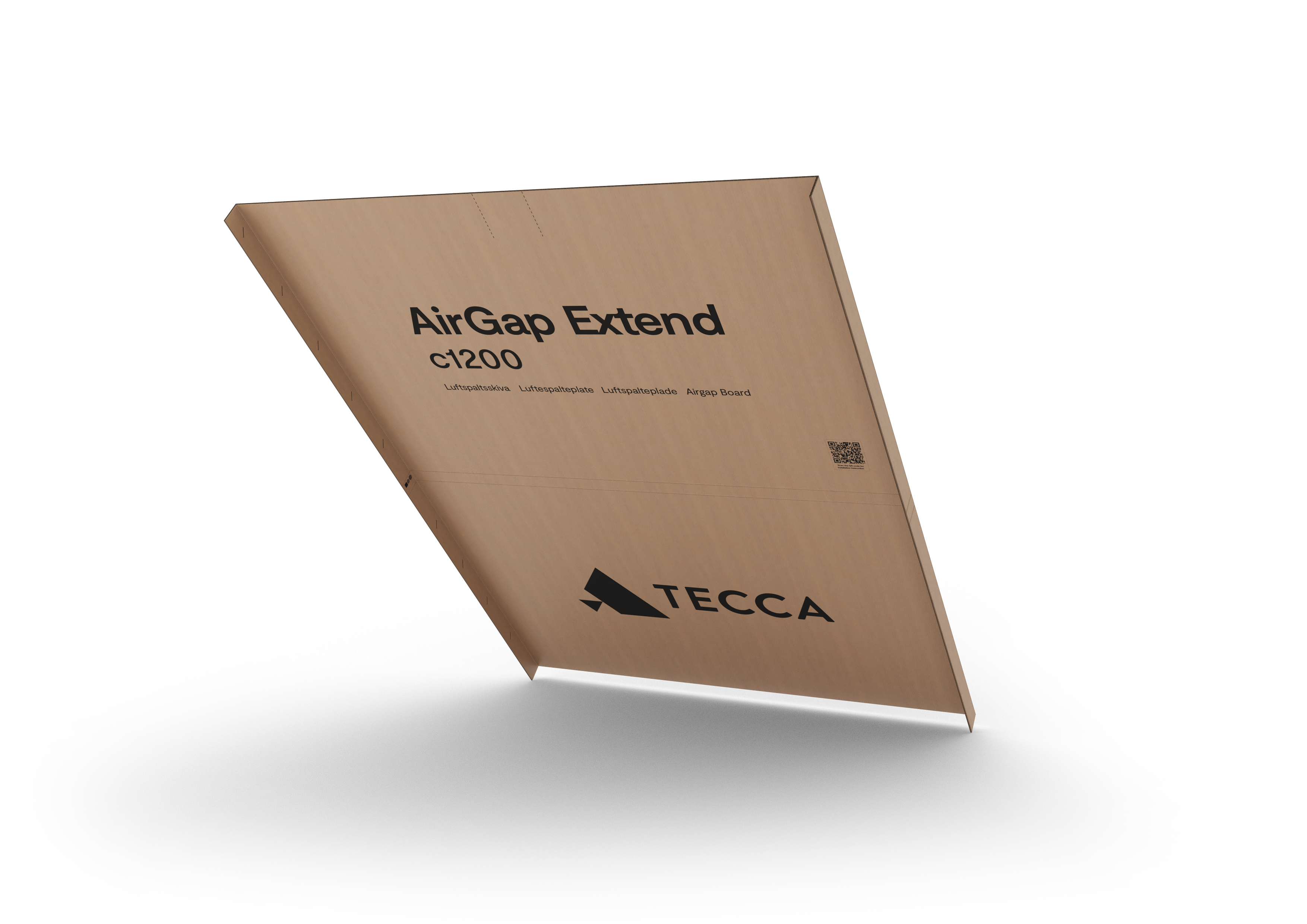

Moisture-protective air gap board made of special corrugated material with wind-protective properties for insulation in roof constructions. The board is diffusion-open, moisture-repellent, and equipped with spacers that ensure the ventilation gap in parallel roofs or alternatively cold attics. The air gap board is part of a system with the product wind deflector where both products can be used together or alternatively only the wind deflector. It is the design of the roof construction that determines.
Optimal multifunction tape primarily used on internal climate screens of polyethylene (vapor barrier) and vapor brake membranes. The airtightness becomes effective and durable when seam taping and various pass-throughs. Also works for taping seams between the wind deflector and the air gap board.
T-Flex Outdoor is a diffusion-tight and flexible exterior construction tape with optimized properties for protection against sunlight (UV), high adhesive strength, and long durability. Available in two widths; 60 mm (standard) and 75 mm (specifically for hard wind protection boards or more challenging taping).
