Radon barrier in foundation
67B 1 1280X960 (1)

In essence

67C 1 1280X960

Buried in the ground

Radon barrier in foundation

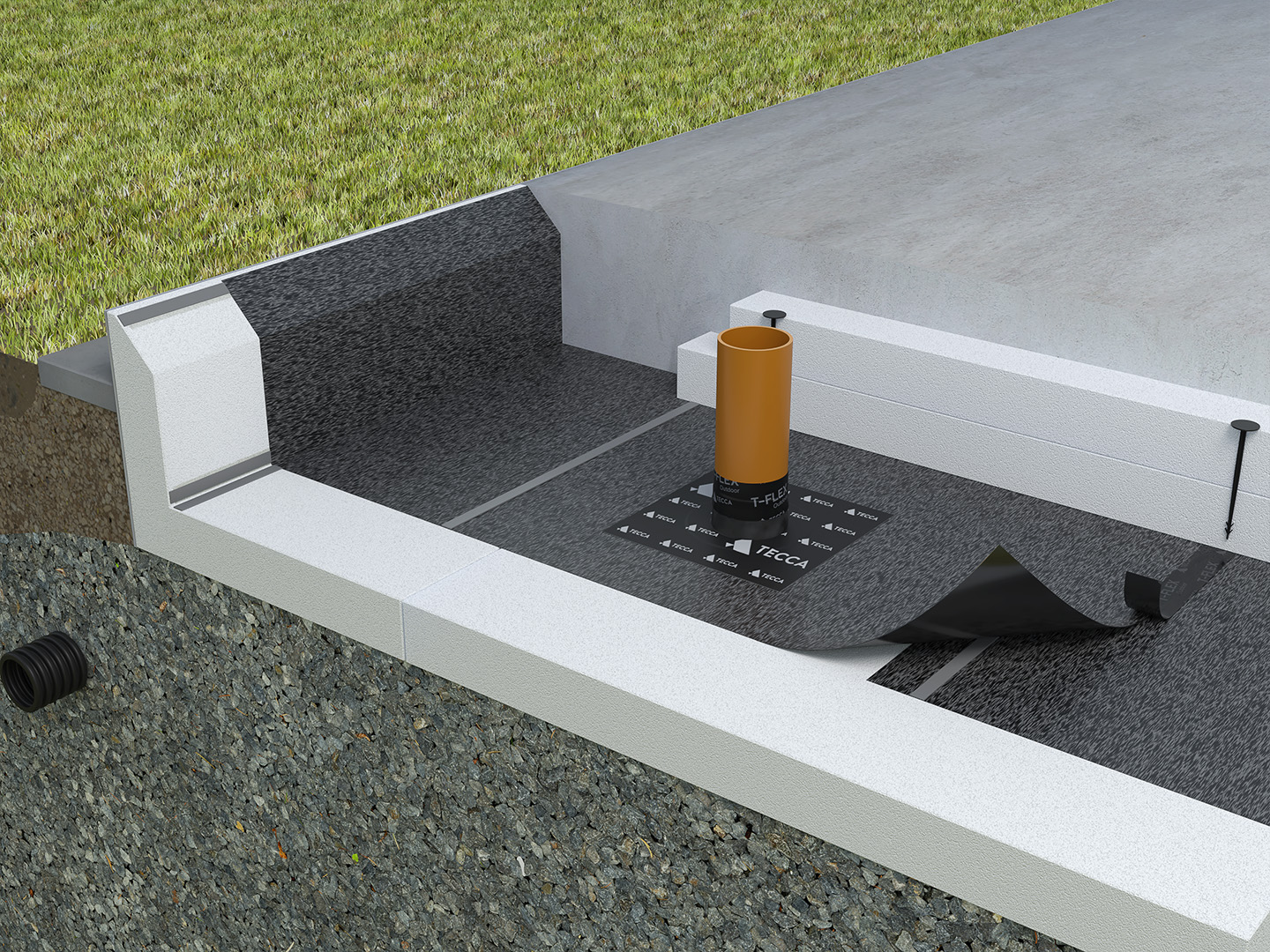

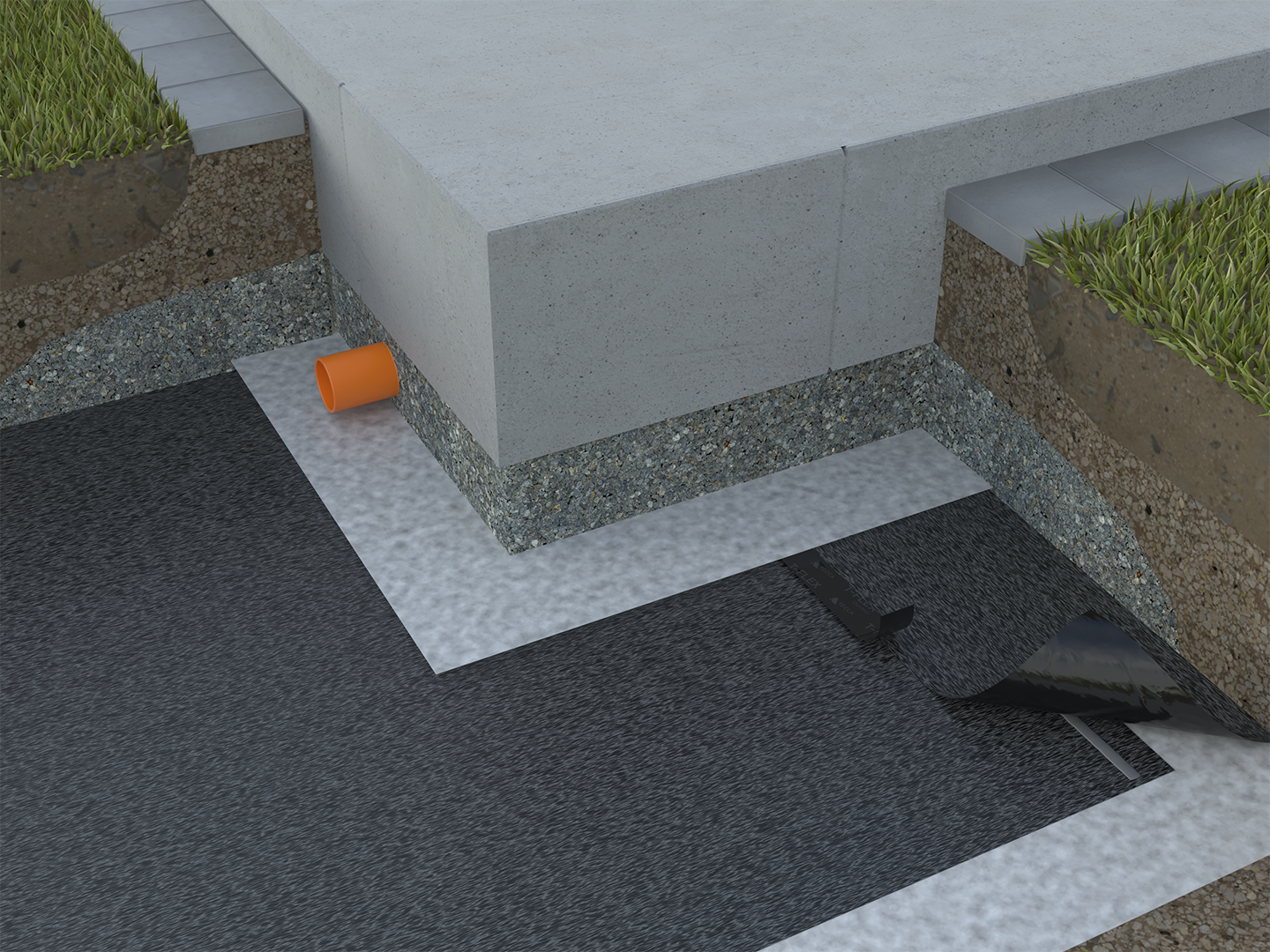

A versatile radon system for use on concrete slab (image 1), in foundation (image 2), and in soil (image 3)



Download BIM objects for the system solution here.

Products in system solution

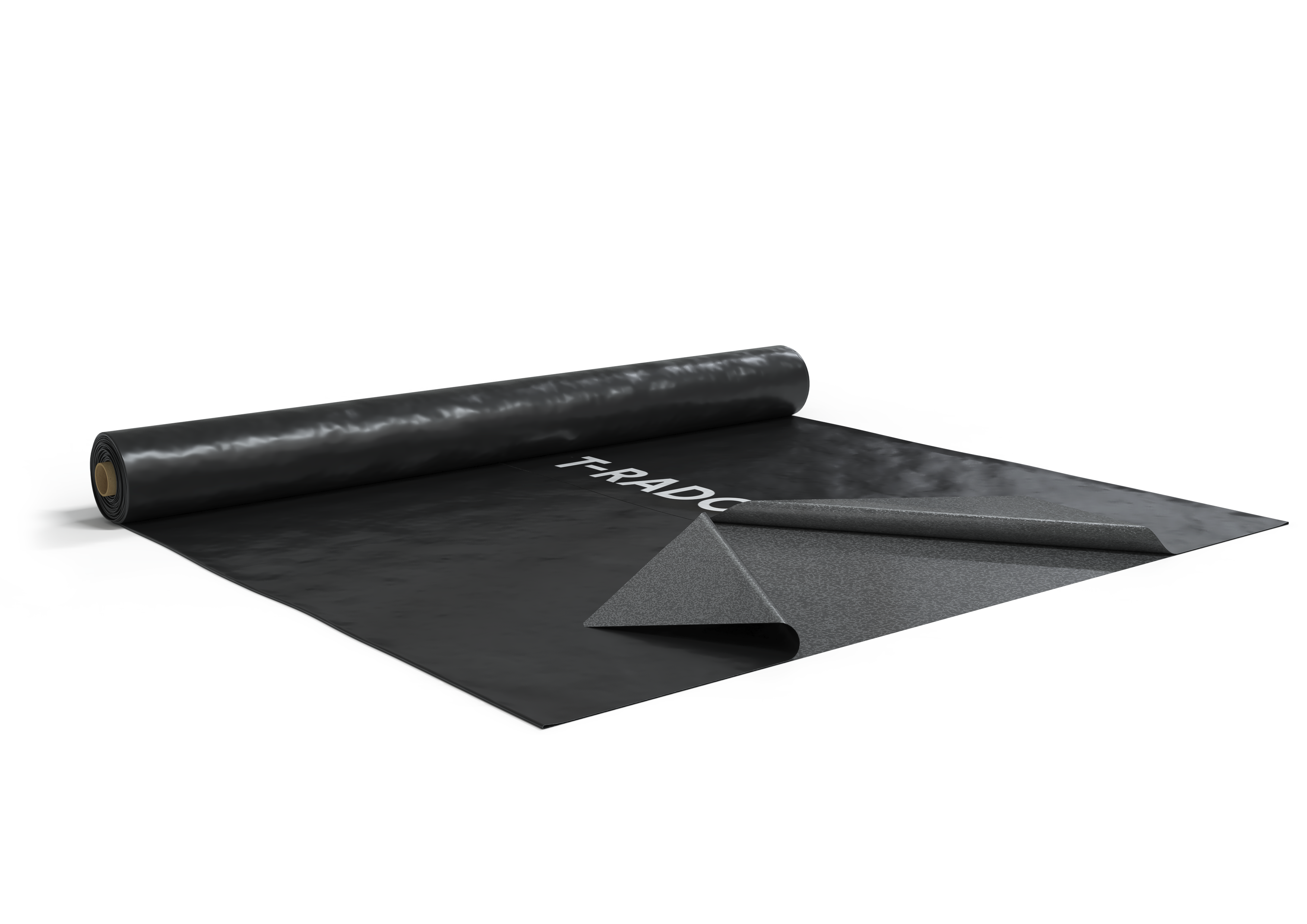

T-Radon Foil
T-Radon Foil

A strong special polyethylene film with high density (diffusion and air/radon), resistant to alkali and aging, with a non-slip surface. Durable for at least 50 years.

At least 50 years of aging resistance
High wear resistance
Multiple mounting options

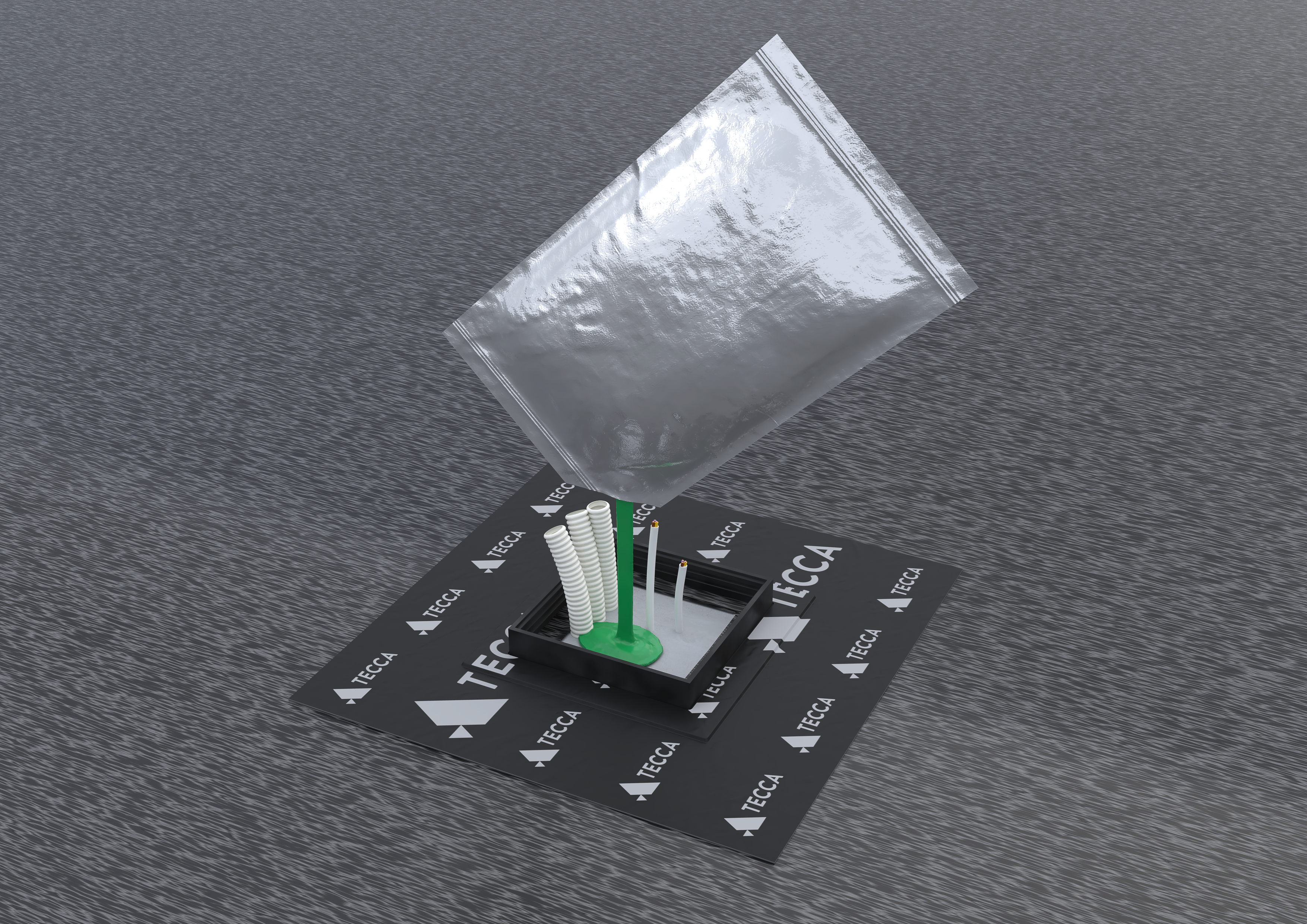

Pourseal-T
Pourseal-T

A system with liquid radon sealing Pourseal-T and self-adhesive casting mold Pourseal-T Frame used around penetrations in radon membranes. This solution is both air and radon tight.

Easy to use
Radon Safe
No waste
Hardens at low temperature

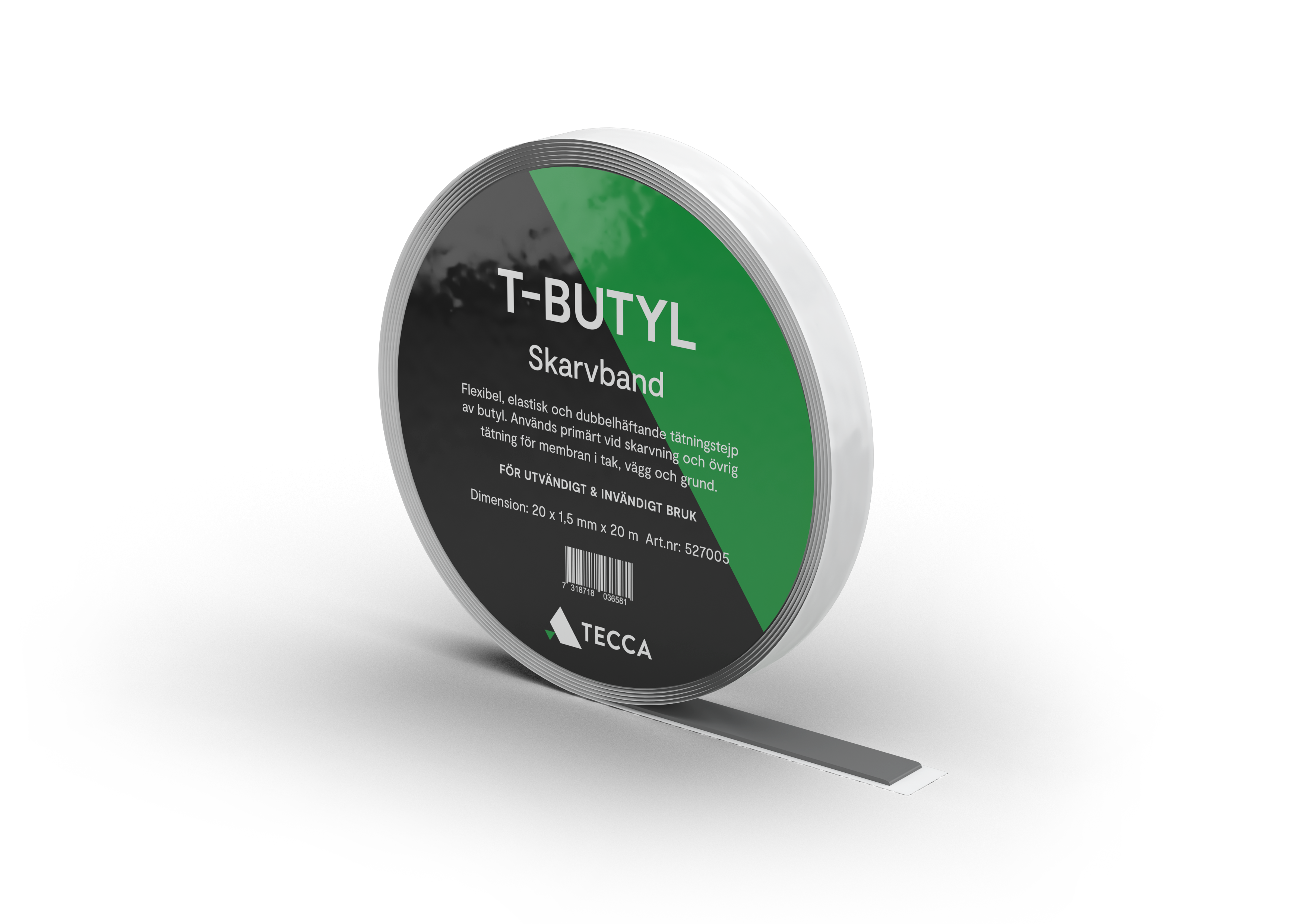

T-Butyl Joint Tape
T-Butyl

Flexible, elastic, and double-sided sealing tape made of butyl. Primarily used for jointing and other sealing purposes.

30-year product warranty
Adhesive on both sides
High adhesion and strength
Long-lasting elasticity and durability

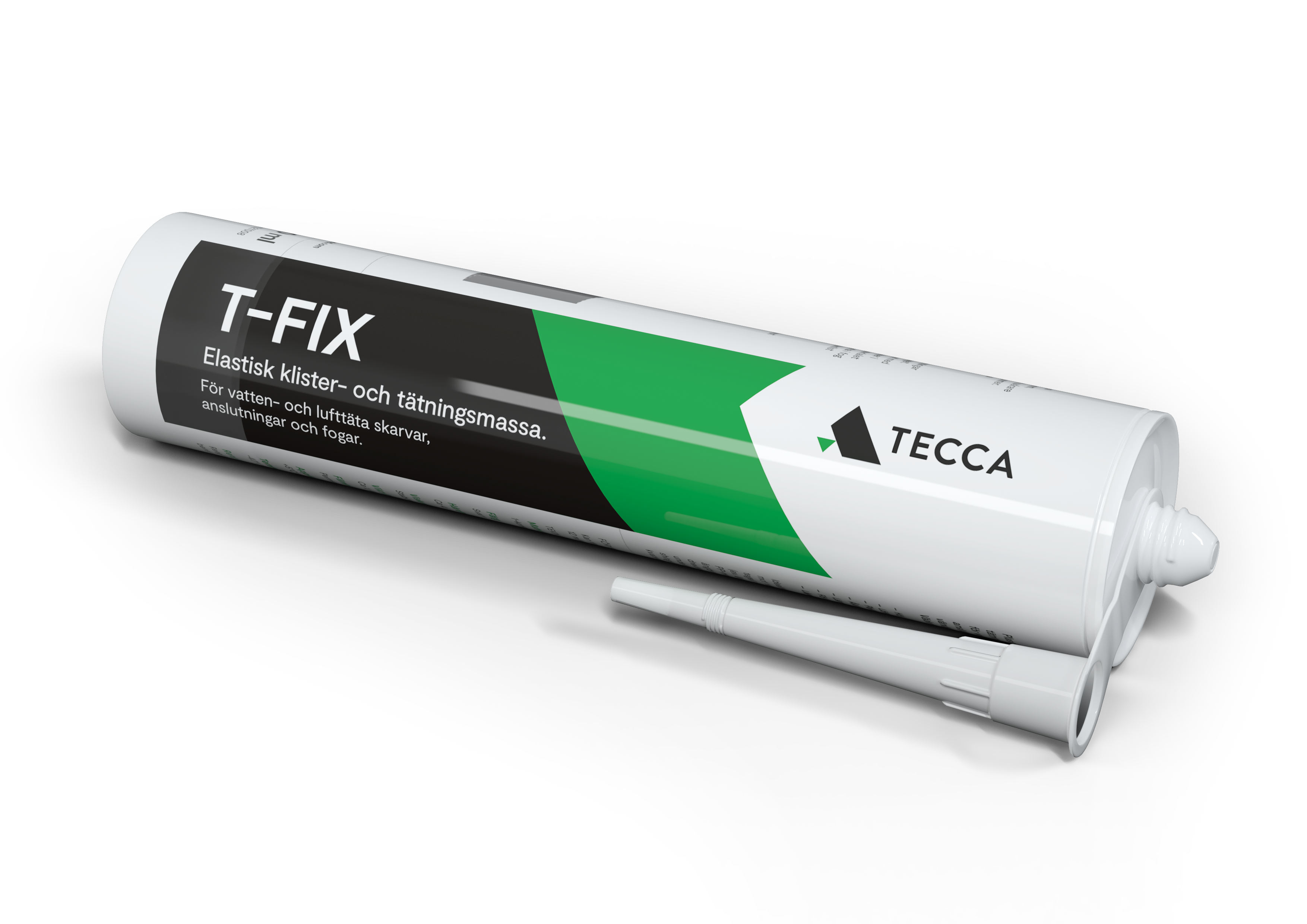

T-Fix, adhesive and sealing compound
T-Fix, adhesive and sealing compound

Primarily used as extra sealing in colder weather.

High adhesion on many surfaces
Solvent-free
Plastic and permanently elastic
Age-resistant
Suitable for nail sealing
For internal and external use
Low emissions
T-Flex Outdoor
T-Flex Outdoor

Diffusion-tight, UV-resistant tape for external use. Used in this assembly as a tear protection in the joints and as an extra seal between pipes and rubber grommets with weather-resistant properties.

Optimal for outdoor use
UV-protected for up to 12 months
Good adhesion on difficult surfaces
Aged for at least 25 years
Flexseal-T
Flexseal-T

Flexible sealing tape with butyl adhesive for use in various solutions for inner and outer corners as well as special penetrations.

Flexible and elastic, retains its shape after stretching
Split protective film which is optimal for taping in corners
Adheres to most materials at low temperatures
Optimal secondary sealing during window installation
Usable on many surfaces
Geo-T N3
Geo-T N3

For use in this system as an alternative "buried in the ground" with the task of protecting T-Radon Foil from damage. Geo-T, N3 is an extra strong geotextile fabric that withstands tougher loads.

Primarily intended for building and road constructions, airports, and parking areas
Up to 100 years of durability
Withstands temperatures up to +25°C
T-Sleeve Butyl
Option 1, T-Stos Butyl

Easy-to-install sleeves with rubber gaskets for round pass-throughs. Butyl adhesive with a protective paper that is removed. Adheres to, among other things, vapor barriers and radon membranes made of polyethylene, windproof fabrics, and vapor brakes made of PP, as well as sheet materials such as gypsum and cement. Harmful moisture is prevented from penetrating the roof's sensitive parts and makes the wall airtight in the inner and outer climate shield. Available in various sizes.

Good aging resistance
Moisture resistant
High air and radon tightness
Easy to assemble
Socket, rubber
Option 2, Rubber boots for gluing

Full rubber sleeves for round pass-throughs. Delivered with a clamping ring, glued with T-Butyl or T-Fix, and taped with T-Flex Outdoor. Available in various sizes.

Roof slope up to 12°
Several alternative diameters
Clamp ring included
