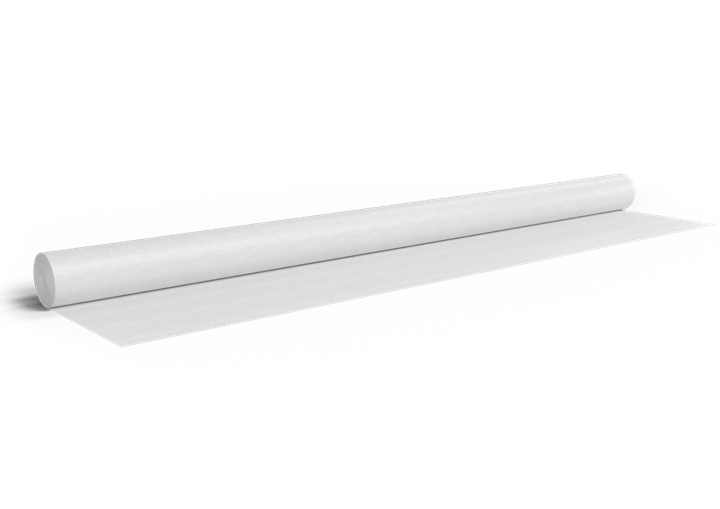

Geo-T N3

Geo-T N3 is a needle-punched geotextile that separates, filters, and drains. The geotextile is made of Polypropylene (PP) which has good durability. Also suitable in acidic or alkaline environments. Up to 100 years of durability with a pH value of 4-9 and temperatures up to +25°C.

Primarily intended for building and road constructions, airports, and parking areas
Up to 100 years of durability
Withstands temperatures up to +25°C

Find retailers High-resolution images

Design

Quantity

Unit

Price/unit

Price information

Buy

Product Information

Application Area

The fabric is primarily intended for construction and road projects, airports, and parking areas. For general constructions, a stone size of 60-200 mm against the geotextile is recommended.

General overlap in the seam underground of at least 20 cm. Load for earthworks with construction machinery (above the fabric) should always occur with a cover of at least 20 cm of soil/ground layer in between!

Installation

General overlap in the seam underground of at least 20cm. Load for earthworks with construction machinery (above the fabric) should always occur with a cover of at least 20 cm of soil/ground layer in between!

Approval

NorGeoSpec 2012, -N3

Important!

The product should be stored and kept protected from sunlight. Laid-out fabric should be covered the same day.
In the usage environment, the geotextile fabric should be completely embedded or buried to ensure functionality and durability.
The geotextile fabric should not be exposed to fill materials such as surrounding layers of blasted rock, sharper stones, or crushed material.
Heavier loads should be applied on buried or covered fabric.
Should be protected from UV radiation (sunlight) after a maximum of 2 weeks of exposure.
