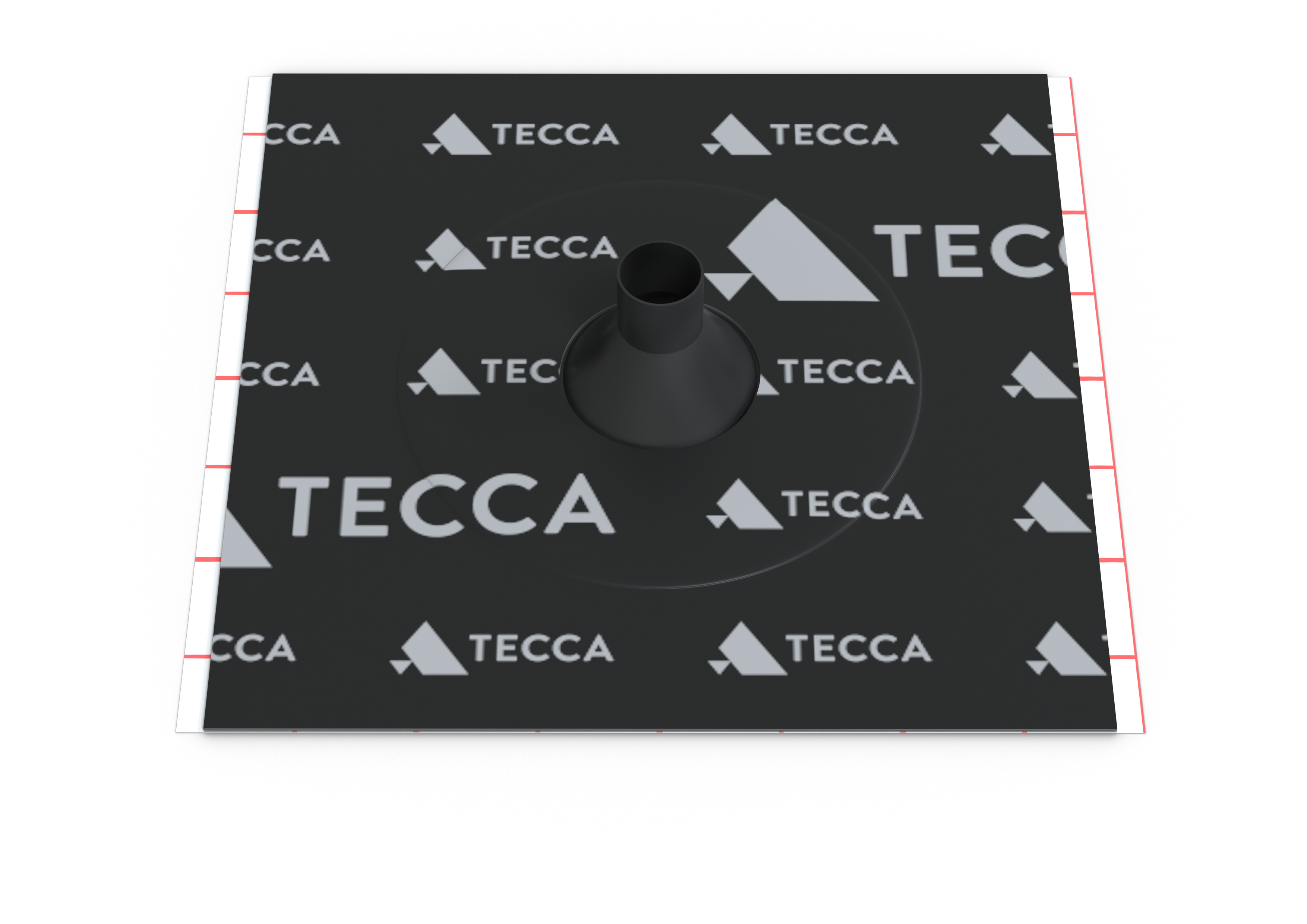

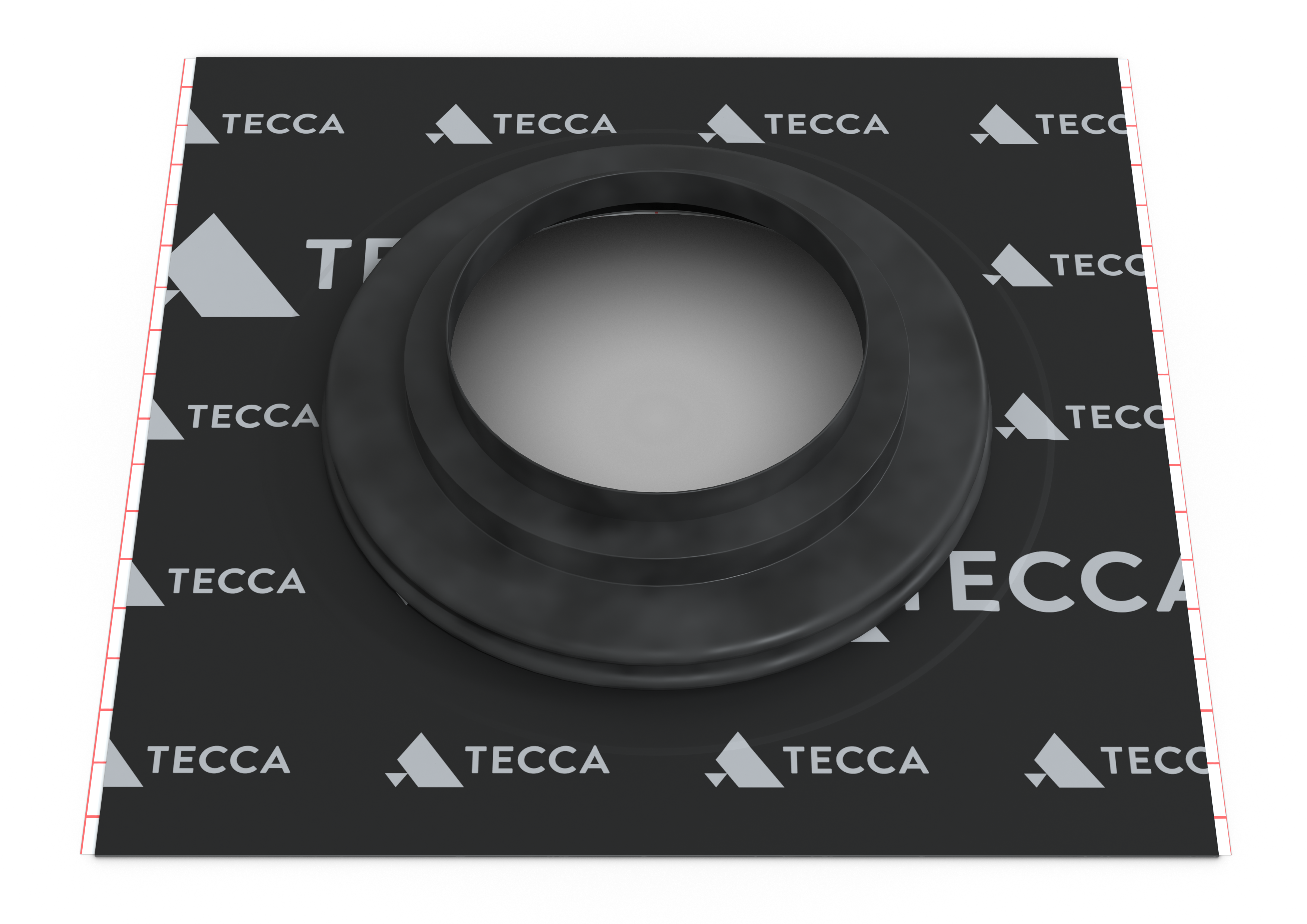

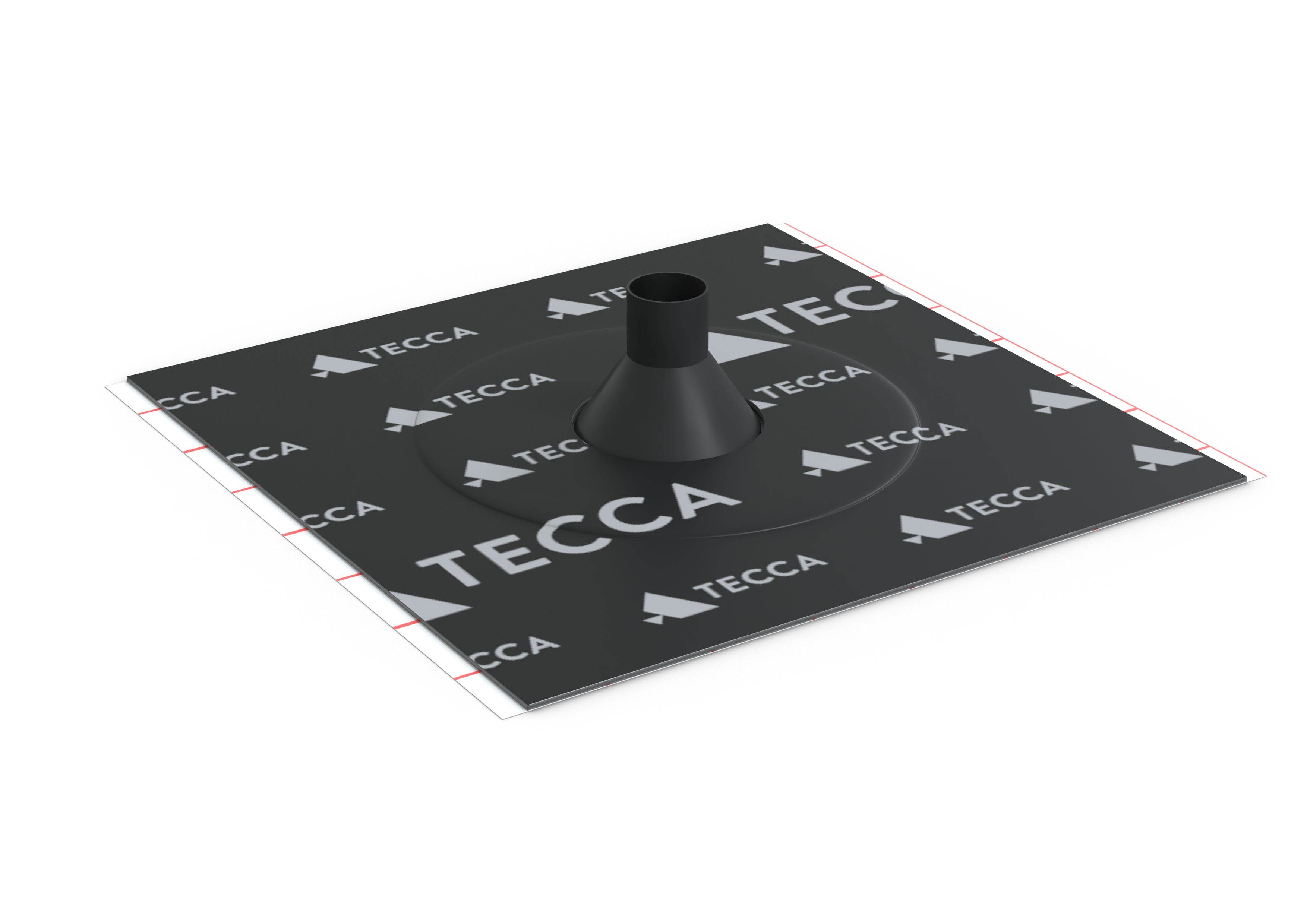

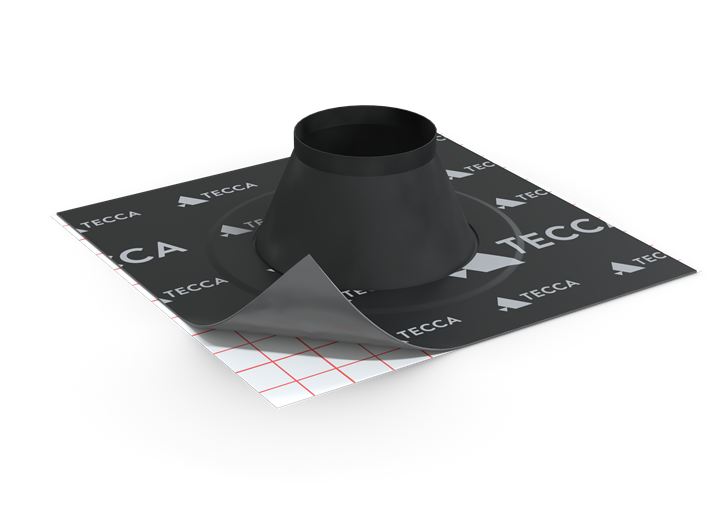

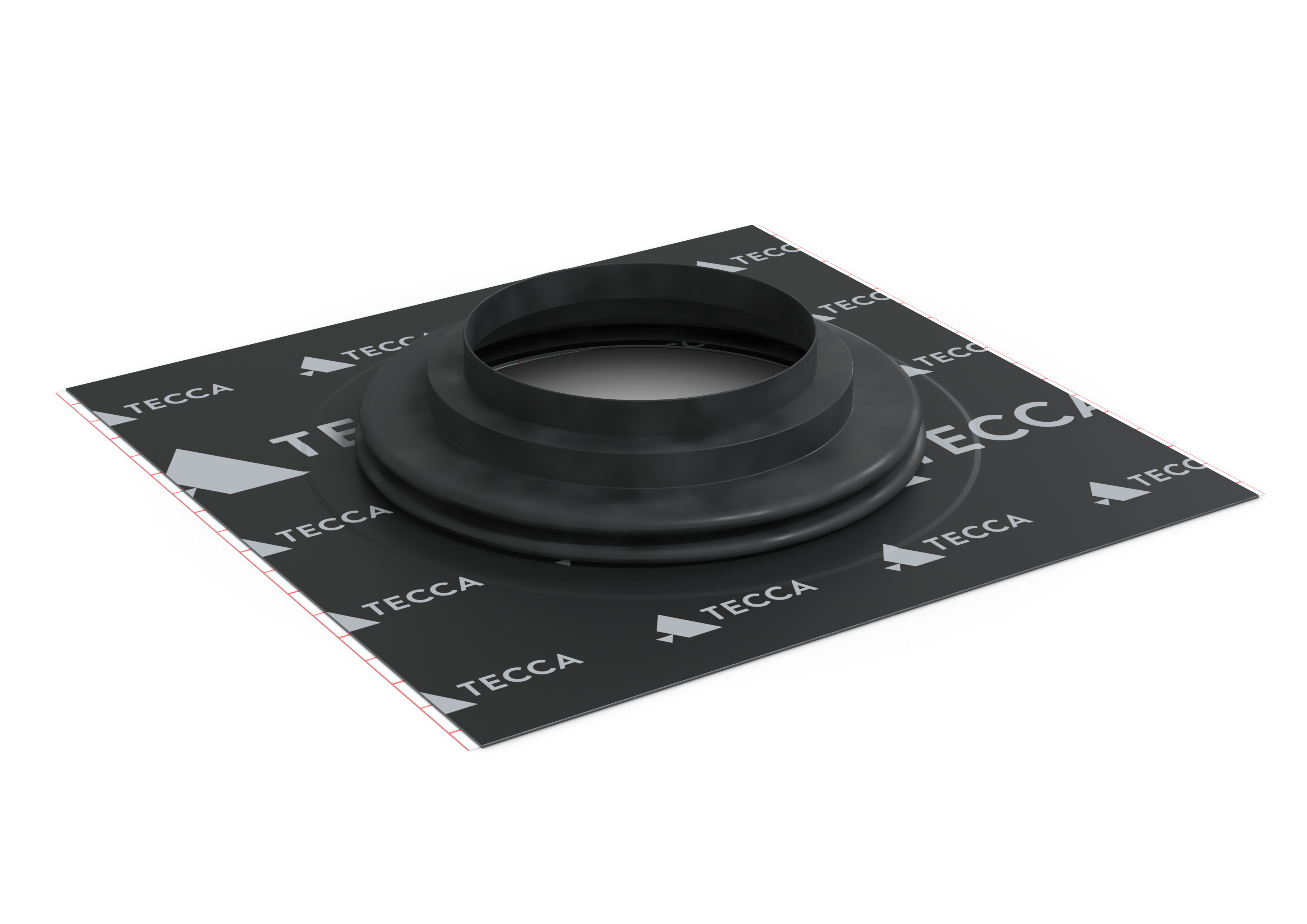

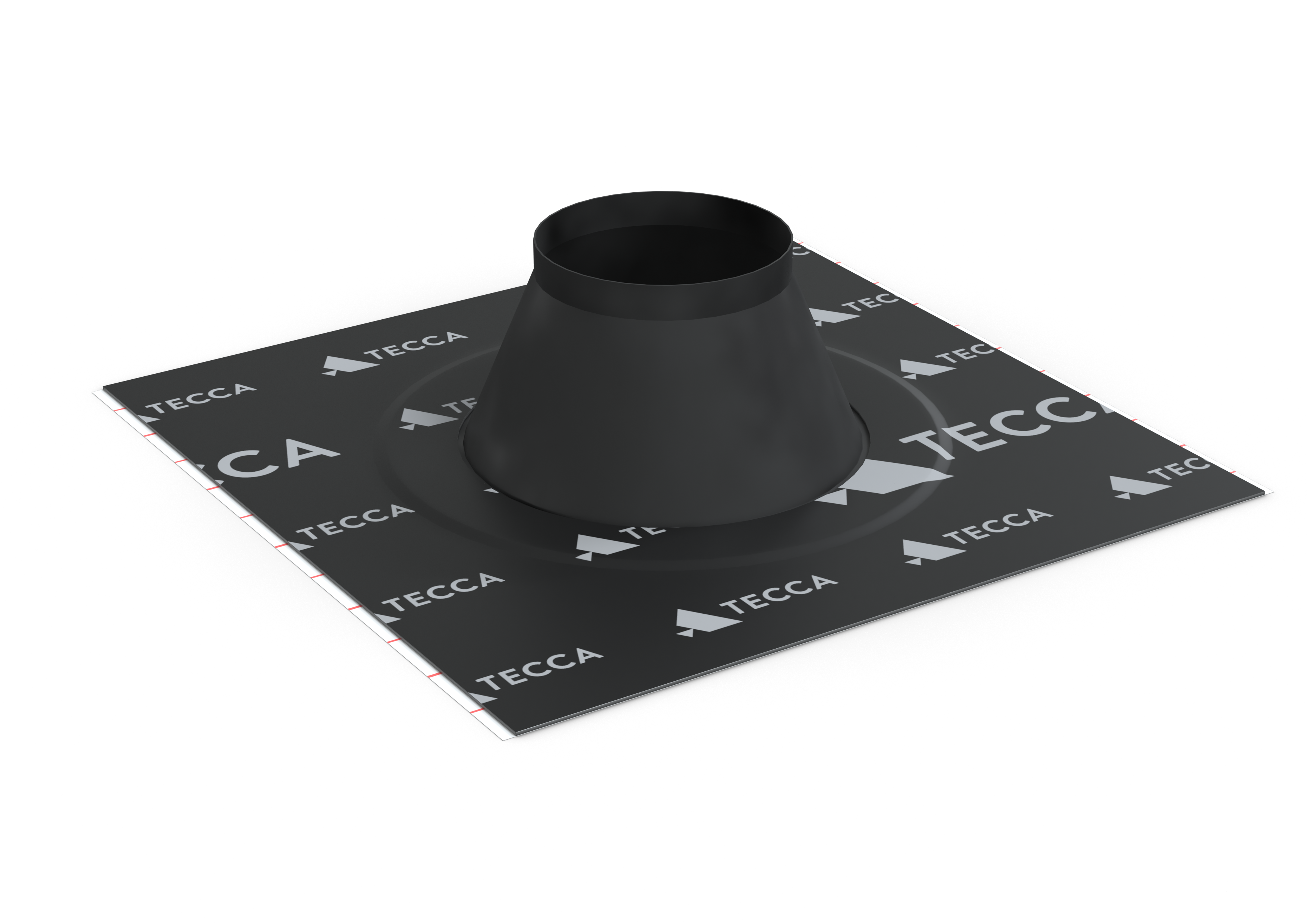

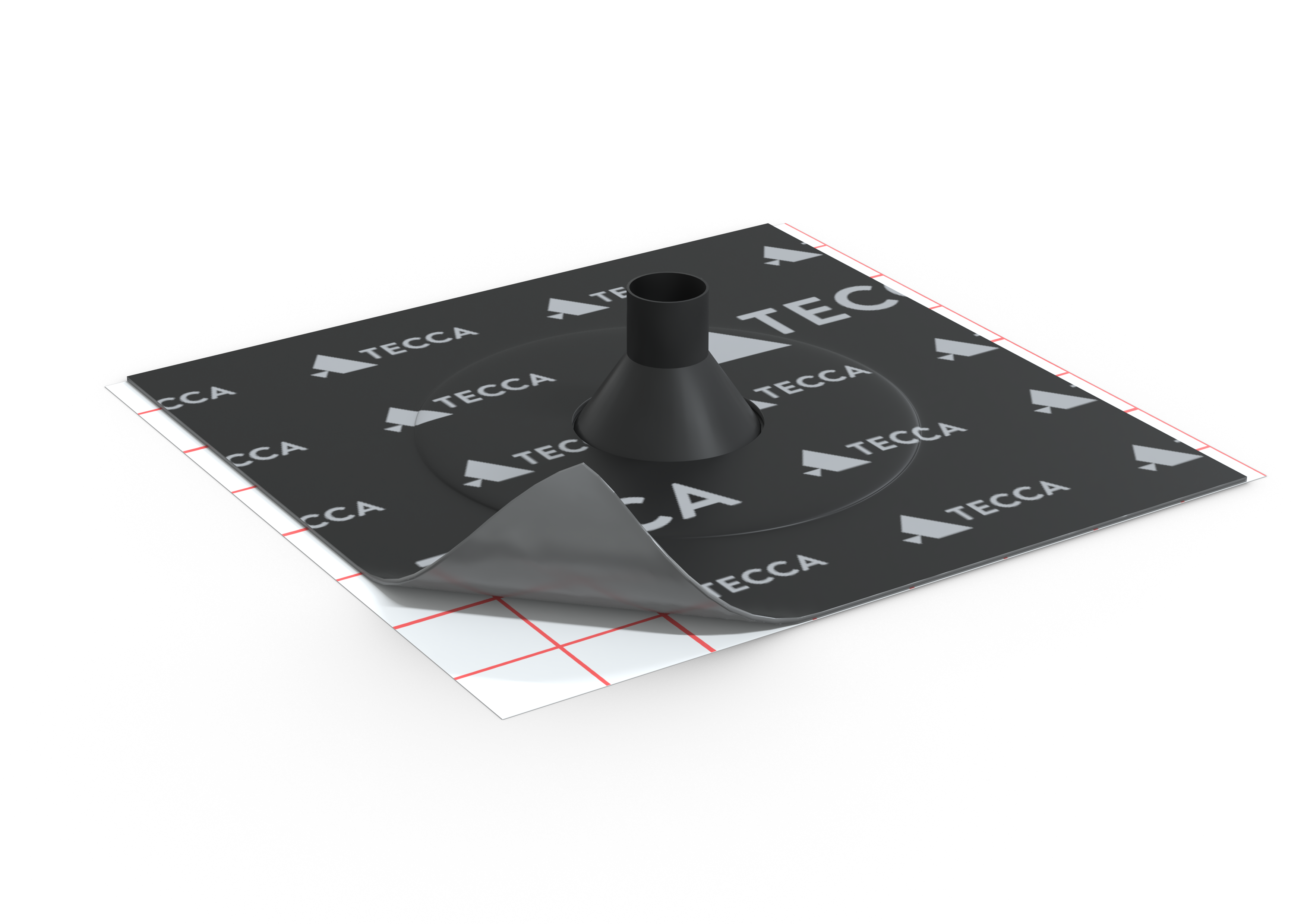

T-Sleeve Butyl

Air-sealing and moisture-protecting penetration sleeves made of butyl adhesive, aluminum foil, and with a sleeve of EPDM rubber. The butyl adhesive is equipped with protective paper that is removed during installation. All materials used have good aging properties, are moisture-resistant, and airtight. Available in various dimensions from 15mm - 165mm and varying flexibility up to 90° mm.

Good aging resistance
Moisture resistant
High air and radon tightness
Easy to assemble

Find retailers High-resolution images

Design

Quantity

Unit

Price/unit

Price information

Buy

Product Information

Application Area

The penetrations are intended for internal and external use. For exterior wall materials such as external windproof fabric (nonwoven), external windproof board (test adhesion), vapor barrier (plastic film), or vapor brake (nonwoven) internally in walls and ceilings. External roof construction of underlay felt, underlay fabric, or underlay roof (e.g., nonwoven material or reinforced foil) as well as on base constructions (primed surface or moisture protection of polymer). Used as accessories for TECCA's internal and external climate screens in the system. T-Stos Butyl consists of an EPDM rubber cylinder, straight or pleated, and a collar of aluminum foil with butyl adhesive provided with protective paper. Available in various flexible designs with bendability up to 90°.

Installation

Ensure that the surface is clean, dry, and grease-free. Apply the sleeve over the pipe/cable and then remove the protective paper under the collar with even pressure against the surface. For sleeves 100-125mm and 150-165mm, the top level of the rubber sleeve can be cut off when using the maximum diameter. In cold weather, below +10˚C, it is recommended to store the sleeve indoors before installation. Pay close attention to the installation temperature as the result depends on it. For optimal adhesion and colder temperatures, gentle heating with a hot air gun can be used. When installing on a bitumen surface (roofing felt), it is recommended to use/apply bitumen primer K-80 first and let it dry before application.
