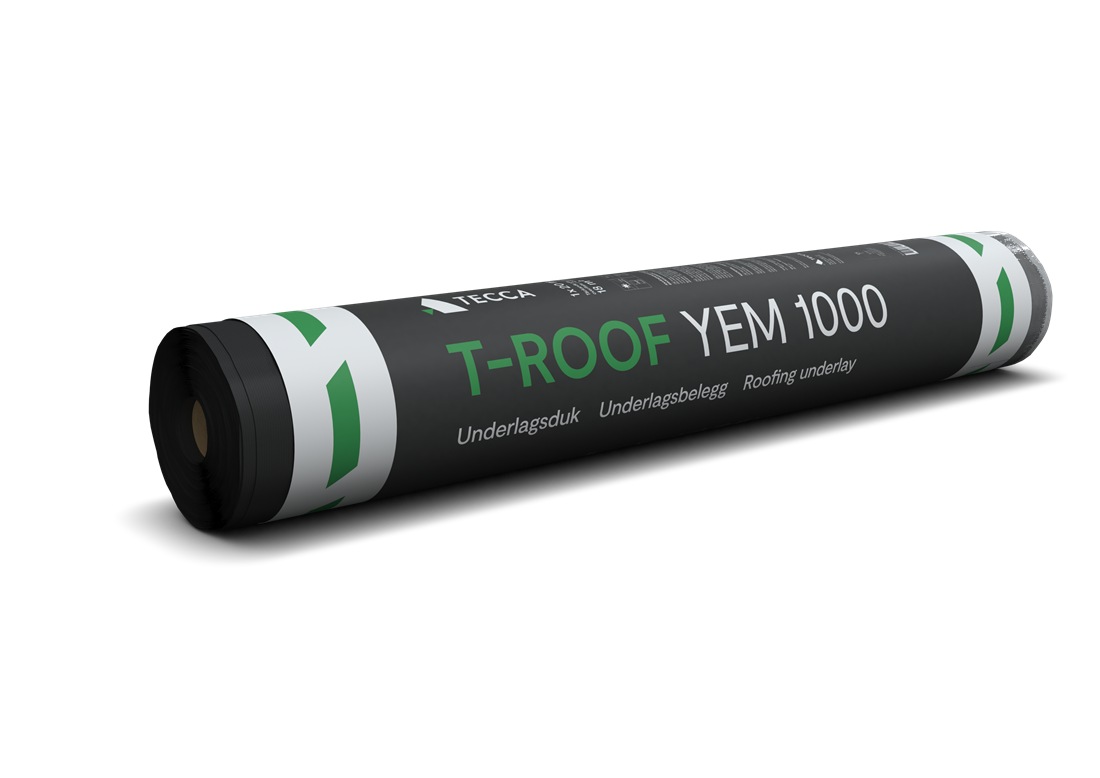

T-Roof YEM 1000 - our first underlayment for welded waterproofing
New, lighter, and more flexible. That is how one can summarize T-Roof YEM 1000. Our first underlay specifically adapted for welded waterproofing membranes. Thanks to its light weight and the ability to be stapled, this product will ease and shorten the working time for everyone working with welded waterproofing membranes.
During the installation of welded waterproofing membranes previously, a stronger underlay felt was needed as heat protection and on wooden substrates. Thanks to the quality of the material in T-Roof YEM 1000, a thickness of only 1 mm is sufficient to provide adequate protection and meet all requirements as a substrate for welded waterproofing on wooden substrates.
This means easier and smoother handling for the person who will carry out the work. Additionally, each roll provides almost twice as many square meters of coverage as before.
The underlay fabric has a sufficient quality to be stapled instead of traditionally nailed, which significantly speeds up the work.
As an underlay fabric, this product also has a strong and good adhesive edge for optimal use with concealed fastening.
T-Roof YEM 1000 meets all requirements according to AMA Hus
AMA Hus from Svensk Byggtjänst is a reference work when you need to prepare and read technical descriptions, and here you will find all the recommendations for your construction project.
T-Roof YEM 1000 is one of the few products on the market that meets the specific requirements set when you need to lay a base sheet under welded waterproofing on wooden substrates according to AMA Hus. According to the requirements, the material must be heat-resistant and dimensionally stable during hot air installation of the waterproofing

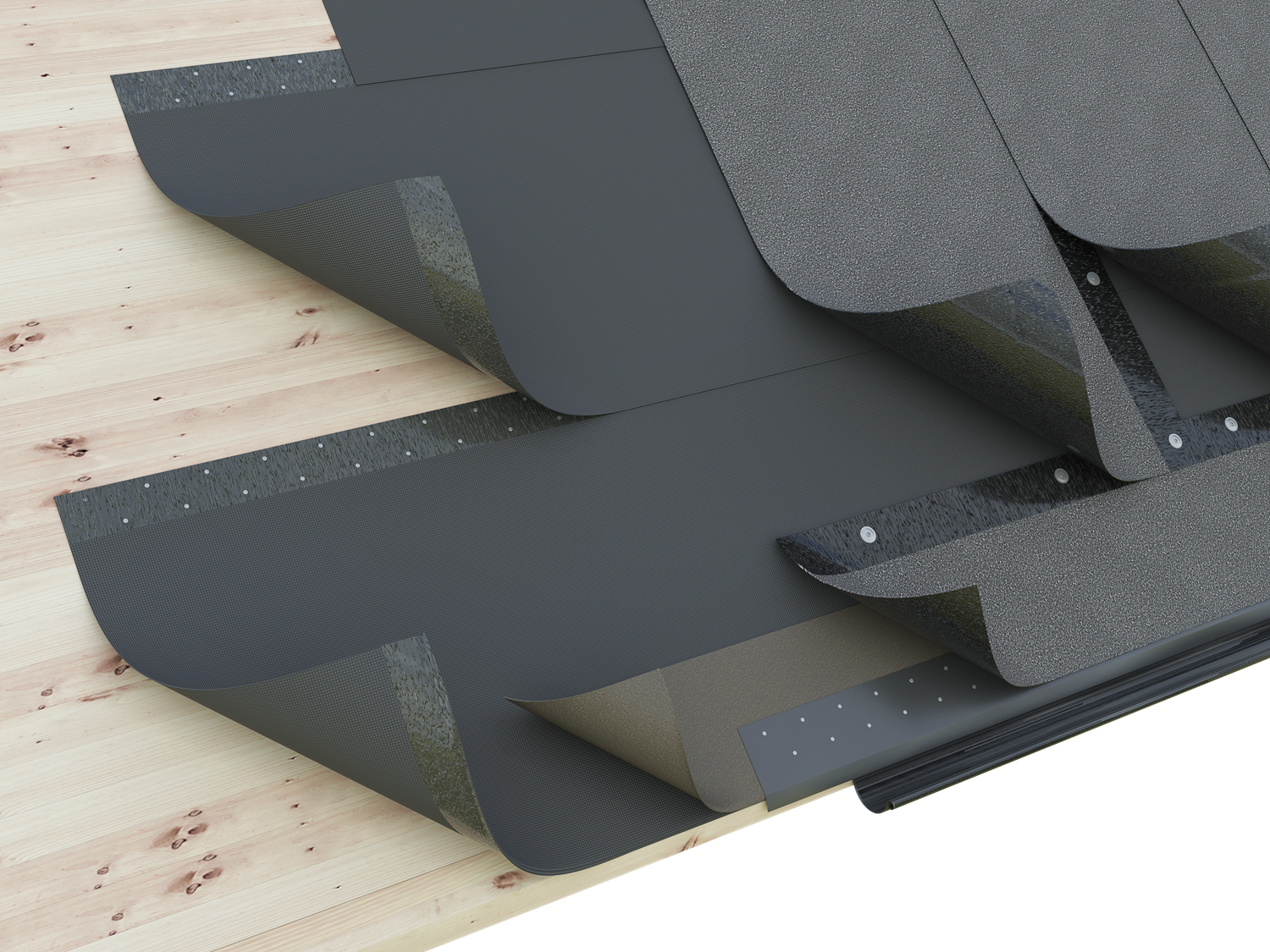

Description of the assembly of T-Roof Yem 1000
Easy and convenient to assemble
Here you see a description of the placement and overlap of the underlay fabric. The sheets are laid from right to left and are easiest to lay from bottom to top. Between the underlay fabric and the sheet metal, a protective strip is placed YEP 2500 to prevent moisture from getting in.
Do you want to know more about T-Roof YEM 1000?
T-Roof YEM 1000 is constructed with a mineral felt core coated with SBS-bitumen and flame-retardant polypropylene felt, with adhesive edges of bitumen and protective film that is removed during jointing and installation. Its UV protection provides long durability for up to 3 months, making it a reliable choice for various phases of the construction project. The structure of T-Roof YEM 1000 is carefully designed, making it a perfect combination with welded waterproofing layers, thereby ensuring quality and long-term durability for the building's roof structure. Its lightweight also contributes to a safer working environment and reduces climate impact. This product is part of TESHELL® and is covered by our warranty program.
- Our first underlay fabric that can be used for welded waterproofing membranes
- Down to 1.5° (approx. 1:40) roof pitch
- UV-protected for up to 3 months
- Lightweight, resulting in less environmental impact and a better working environment
Read more about the product here:
T-Roof YEM 1000
