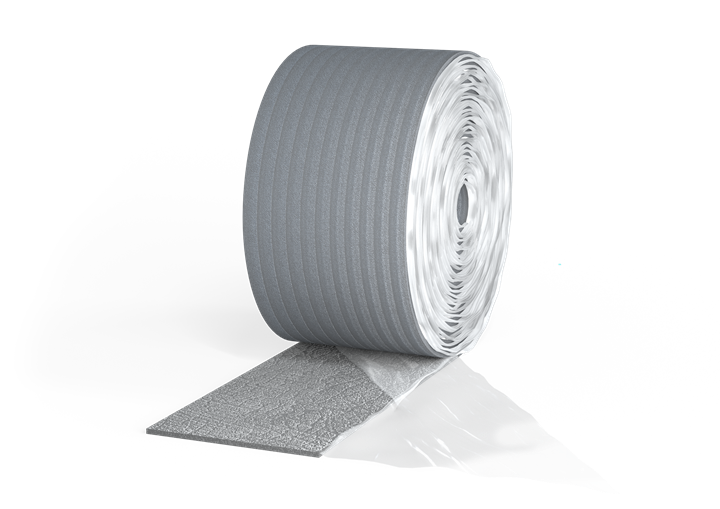

T-Sill Super
En robust, kraftig syllisolering med isolerande, luft- och fukttätande egenskaper som har minst 50 års åldringsbeständighet. T-Syll Duo består av expanderad polyeten i form av en foam. Foamen består av helt slutna och isolerande celler. På ena sidan är foamen belagd med ett fuktskydd i form av en luft- och ångspärr. Fuktskyddet består av en homogen polyetenfilm som täcker hela syllisoleringsbredden samt 20 cm extra från kant.
Åldersbeständig minst 50 år
Anslutningsvänlig mot övrigt fuktskydd
Lufttätande och fuktskyddande
Leveling and insulating
Application Area
Sill insulation against the foundation for exterior walls with integrated overlapping moisture protection (vapor barrier) for easy connection to the foundation slab's comprehensive moisture protection. An insulating layer between the foundation and sill, where capillary-breaking moisture protection and airtightness are desired.
Installation
For complete assembly instructions, see the separate assembly guide.
Approval
Certificate: SC 0734-09
Important!
- When splicing and connecting to other moisture protection, Sealing Tape T-Flex should be used.
- The width of the sill insulation must always at least match the width of the overlying sill board.
- Storage and preservation should be done in a way that protects the product from UV radiation and heat (< +35˚C) as this shortens the product's lifespan.
- T-Syll Duo has a built-in UV protection that corresponds to the normal construction time.
This product is evaluated and registered with the following entities:
Declared item in Supply Chain Declaration Portal (SCDP) for New buildings gen. 4.- Registered in the Swan's house product portal
This product is evaluated and registered with the following entities.
Articles
- Name Art.nr Specification
Technical specification
- Material: Expanded and extruded LD polyethylene (LDPE)
- Density: 30 kg (SS-EN 1602)
- Thickness: 7 mm
- Aging resistance: (alkali) At least 50 years (SP-0414)
- Vapor tightness (approx.): 2000 x 10³ s/m (SP-2706)
- Waterproofness: Sealed (EN 1928)
- Recommended installation temperature: -20 to +40 ˚C
Accessories for T-Syll Super
More about T-Syll Duo
