Mouse band, ≤28 mm gap

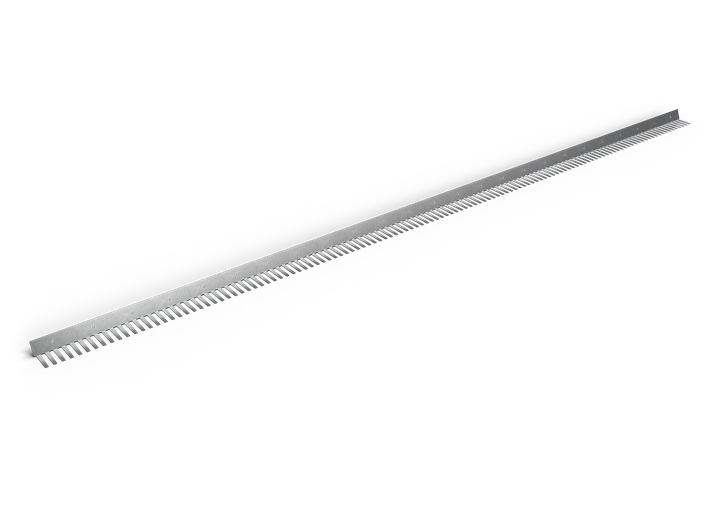

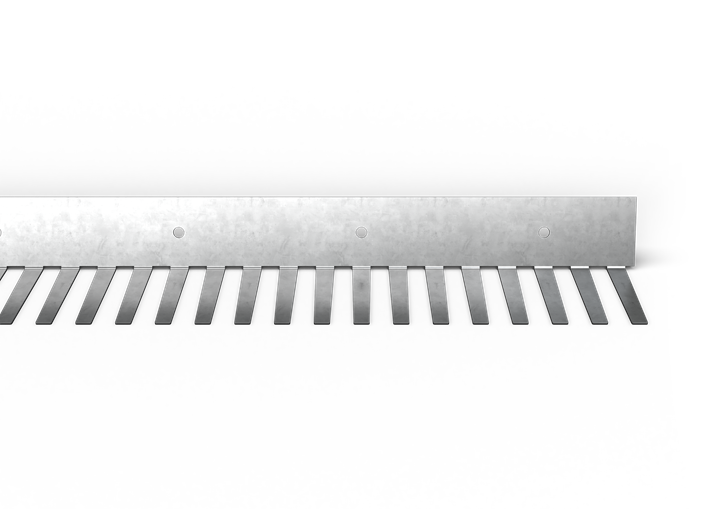

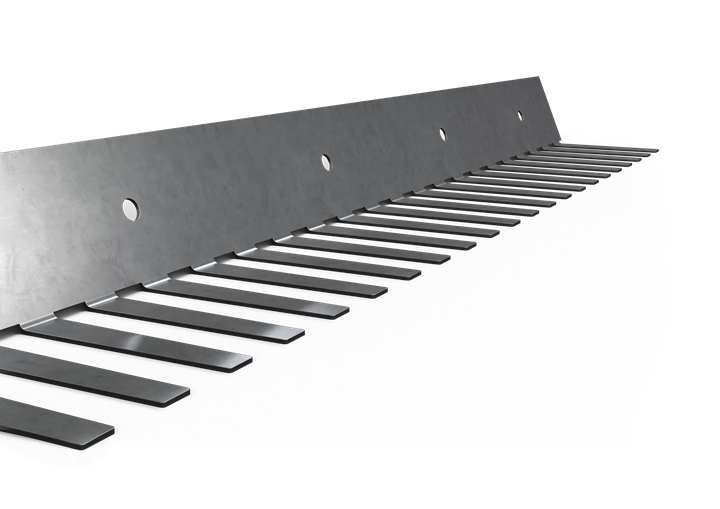

Hot-dip galvanized mouse strip made of steel sheet. Mouse and small animal protection for installation under wall panel.

Ensures good ventilation of the air gap
Suitable for both vertical cladding (including profiled sheet metal) and horizontal paneling

Find retailers High-resolution images

Design

Quantity

Unit

Price/unit

Price information

Buy

Product Information

Application Area

The mouse band is used to prevent mice and other small animals from getting under the panel on all types of buildings while ensuring good ventilation of the air gap between the facade and the wind barrier on the outside of the wall.

Installation

The nail battens must be at least 20 mm thick. The base boards in a vertical cladding panel should have a dimension of 15-28 mm. The mouse band is suitable for both vertical cladding panels (including profiled
sheet metal) alternatively horizontal panel.

For vertical cover panel: attach the mouse strip to the lowest horizontal nail batten. First, install the bottom boards repeatedly over the mouse strip. Finally, install the cover boards.

For horizontal paneling: attach the mouse band at and to the bottom edge of the wind barrier into the wall sill. Then, install vertical nail battens repeatedly over the serration. The mouse band is joined edge to edge. Install from the bottom upwards on the vertical nail batten.

From below, the panel cavity is now covered with the serration of the mouse band. For horizontal panels, the serration of the mouse band covers the wider cavities between the vertical nail battens.
