T-Syll Duo

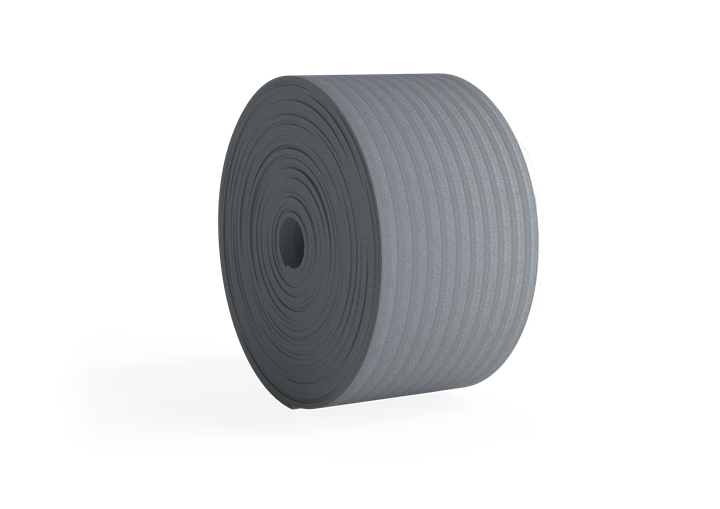

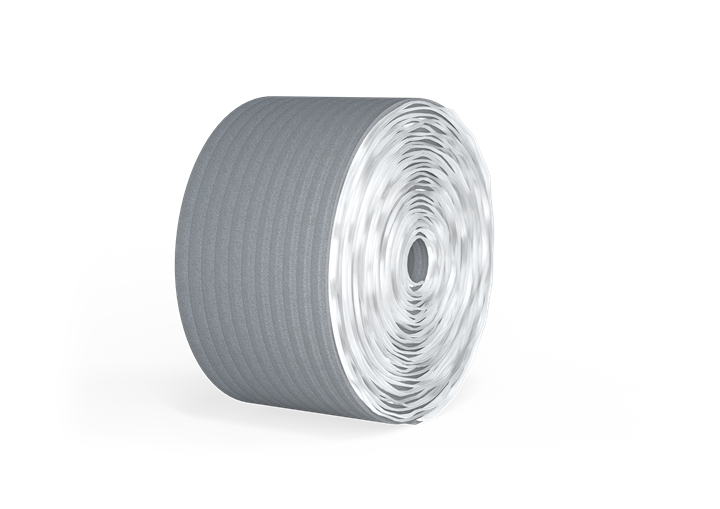

A robust, strong sill insulation with insulating, air and moisture sealing properties that has at least 50 years of aging resistance. T-Syll Duo consists of expanded polyethylene in the form of a foam. The foam consists of completely closed and insulating cells. On one side, the foam is coated with moisture protection in the form of an air and vapor barrier. The moisture protection consists of a homogeneous polyethylene film that covers the entire width of the sill insulation plus an extra 20 cm from the edge.

Age-resistant for at least 50 years
Compatible with other moisture protection
Airtight and moisture-protective
Leveling and insulating

Find retailers High-resolution images

Design

Quantity

Unit

Price/unit

Price information

Buy

Product Information

Application Area

Sill insulation against the foundation for exterior walls with integrated overlapping moisture protection (vapor barrier) for easy connection to the foundation slab's comprehensive moisture protection. An insulating layer between the foundation and sill, where capillary-breaking moisture protection and airtightness are desired.

Installation

For complete assembly instructions, see the separate assembly guide.

Approval

Certificate: SC 0734-09

Important!

When splicing and connecting to other moisture protection, Sealing Tape T-Flex should be used.
The width of the sill insulation must always at least match the width of the overlying sill board.
Storage and preservation should be done in a way that protects the product from UV radiation and heat (< +35˚C) as this shortens the product's lifespan.
T-Syll Duo has a built-in UV protection that corresponds to the normal construction time.

This product is part of TESHELL® and is covered by our warranty program. Read more here

Articles

Name Art.nr Specification

Documents

Specification

Technical specification

Material: Expanded and extruded LD polyethylene (LDPE)
Density: 30 kg (SS-EN 1602)
Thickness: 7 mm
Aging resistance: (alkali) At least 50 years (SP-0414)
Vapor tightness (approx.): 2000 x 10³ s/m (SP-2706)
Waterproofness: Sealed (EN 1928)
Recommended installation temperature: -20 to +40 ˚C

Assessments

This product is evaluated and registered with the following entities:

Registered in Basta's product database
Assessed in Sunda hus
Building product assessment level: 1.Accepted
Declared item in the Supply Chain Declaration Portal (SCDP) for New Buildings Gen. 4.
Registered in the Swan's house product portal
