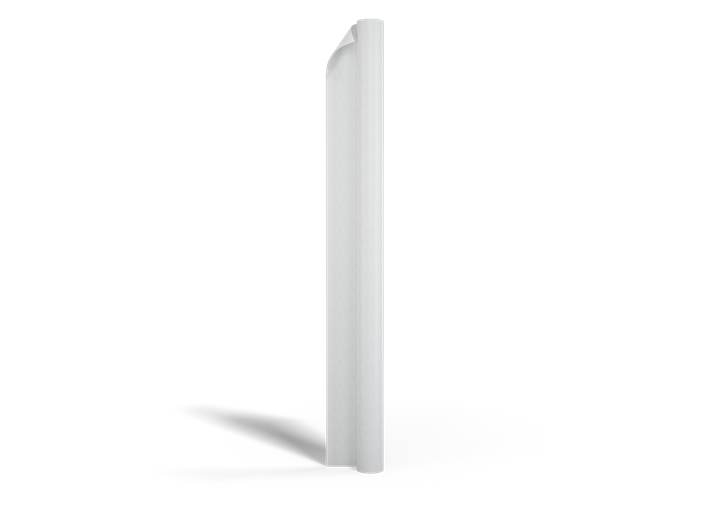

Geo-T N3
Geo-T N3 är en nålfiltad geotextil som separerar, filtrerar och dränerar. Geotextiliern är tillverkad av Polypropen (PP) som har god beständighet. Även bra i sur eller alkaliska omgivningar. Upp till 100 års beständighet med Ph-värde 4-9 samt temperaturer upp till +25°C.
Primarily intended for building and road constructions, airports, and parking areas
Up to 100 years of durability
Withstands temperatures up to +25°C
Application Area
The fabric is primarily intended for construction and road projects, airports, and parking areas. For general constructions, a stone size of 60-200 mm against the geotextile is recommended.
General overlap in the seam underground of at least 20 cm. Load for earthworks with construction machinery (above the fabric) should always occur with a cover of at least 20 cm of soil/ground layer in between!
Installation
General overlap in the seam underground of at least 20cm. Load for earthworks with construction machinery (above the fabric) should always occur with a cover of at least 20 cm of soil/ground layer in between!
Approval
NorGeoSpec 2012, -N3
Important!
- The product should be stored and kept protected from sunlight. Laid-out fabric should be covered the same day.
- In the usage environment, the geotextile fabric should be completely embedded or buried to ensure functionality and durability.
- The geotextile fabric should not be exposed to fill materials such as surrounding layers of blasted rock, sharper stones, or crushed material.
- Heavier loads should be applied on buried or covered fabric.
- Should be protected from UV radiation (sunlight) after a maximum of 2 weeks of exposure.
Environmental Assessments
Building materials assessed for a better working environment.
Assessed by Sunda Hus for sustainable construction.
Assessed by the Building Material Assessment for sustainable and non-toxic construction.
This product is evaluated and registered with the following entities.
Articles
- Name Art.nr Specification
Technical specification
- Weight: 190 g/m²
- Pore size: 90 µm
- Water permeability: 0.06 m/s
