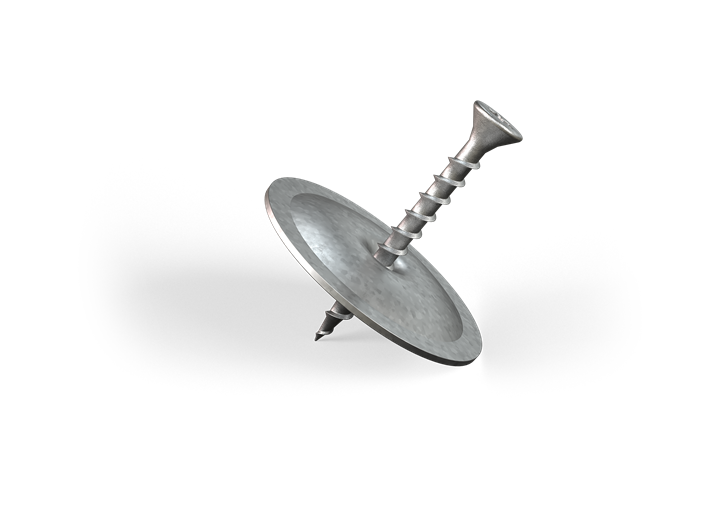

Screw and washer for surface felt
Tecca Skruv och bricka är en skruv med förmonterad bricka för infästning av ytpapp Toptite 3 Green på träunderlag.
Provides maximum fastening
Requires fewer fastening points
Application Area
Used as an alternative fastening of Surface Felt Toptite 3 Green on wooden surfaces.
Installation
The center distance for screws in the middle zone is 50 cm and 25 cm in corners and edge zones (about 1m from edges). Approximately 30 screws (1 pack) are used per roll of surface felt. No screws should be visible after installation. See installation instructions Toptite 3 Green.
Important!
- See assembly instructions Toptite 3 Green
This product is evaluated and registered with the following entities.
Articles
- Name Art.nr Specification
Technical specification
- Material: Steel
- Surface Treatment: Hot-dip galvanized
- Washer diameter: 40 mm
- Screw diameter: 5.2 mm
- Length: 35 mm
- System: Torx 25
