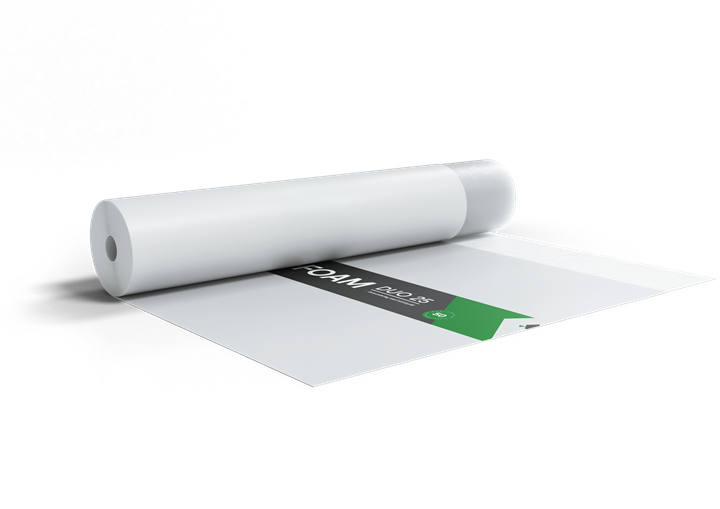

T-Foam Duo 25
T-Foam Duo 25 speciellt framtagen för dagens höga krav vid läggning av flytande laminat- och parkettgolv utan lim då man även behöver ett enkelt inbyggt fuktskydd. Produkten är tillverkad av extruderad skummad polyeten med helt slutna celler och kombinerats med en laminerad ångspärr av polyeten (PE) vilket ger två olika arbetsmoment i ett vid läggning. T-Foam Duo 25 är åldrings- och alkaliebeständig samt finns i olika längder och även med en kraftigare fuktskydd/folie Foam Duo 100) men även helt utan fuktskydd/ångspärr (T-Foam).
Integrated moisture protection
Reduces impact sound
Levels out irregularities in the surface
Aging resistant for at least 50 years
100% recyclable
Application Area
The application area is most types of floor structures where one wants to isolate structure-borne sound, level out irregularities, and provide increased comfort while also needing moisture protection. Thanks to the material's good leveling ability and low deflection at joints, it is recommended for installation with both laminate and parquet floors. T-Foam Duo 25 has very good recovery ability after load and pressure. Suitable for floors with underfloor heating.
Important!
- Storage and warehousing should always be done indoors, packaged or in a way that protects the product from sunlight (UV radiation) and heat (˃ +35°C). The maximum operating temperature when mounted on the floor is also +35°C. Higher temperatures primarily affect aging resistance.
- On substrates of concrete, lightweight concrete, or floor leveling compound, with relative humidity (RH) over 60% (up to a maximum of RH 90%), an aging-resistant moisture barrier such as T-Foam Duo should be used.
- On substrates such as slab on ground, floor joists above warm or humid spaces, or floors with underfloor heating, moisture protection should always be used under wood and laminate floors, such as the combination product T-Foam Duo. However, the maximum relative humidity (RH) allowed in the substrate with moisture protection (vapor barrier) is 90%.
- Every joint and overlap with moisture protection foil should be taped for optimal moisture tightness with Sealing Tape T-Flex. Pay special attention to warm floors and floors above warm or humid spaces.
This product is evaluated and registered with the following entities:
Declared item in Supply Chain Declaration Portal (SCDP) for New buildings gen. 4.- Registered in the Swan's house product portal
This product is evaluated and registered with the following entities.
Articles
- Name Art.nr Specification
Technical specification
- Material: Extruderad skummad LD-Polyeten samt laminerad HD-Polyetenfolie
- Density: 30 kg/m³
- Thickness: 2 mm
- Length: 15 m / 50 m
- Width: 1000 mm
- Impact Sound Reduction: 17-19 dB (stegljudsklass 7)
- Impact Sound Reduction (IS): ≥ 20 dB
- Vapor tightness: 1,7 x 10⁶ s/m (Sd = 45m)
- Compression and Strength (CS): 21.2 kPa
- Thermal Resistance (R): 0.04 m²K/W
- Aging resistance: at least 50 years
- Maximum permissible moisture content in the substrate (RH): 90 %
Accessories for T-Foam Duo 25
