FormPlate

FormPlate är tillverkad av specialwell och används som form för gjutning. Den ersätter traditionella gjutskivor av kanalplast vid gjutning av fundament med armeringskorgar. Produkten har låg klimatpåverkan eftersom den är tillverkad av biobaserat material och dessutom består av mer än 50 % återvunnet material.

  • Low climate impact and biodegradable

  • Quick assembly and easy customization

  • Can be left in place after casting

  • Time-saving


Buy
Lägg till som favorit

Application Area

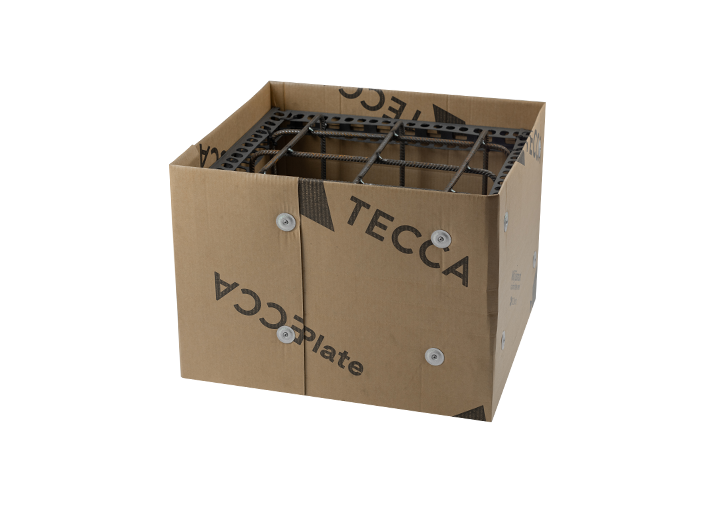

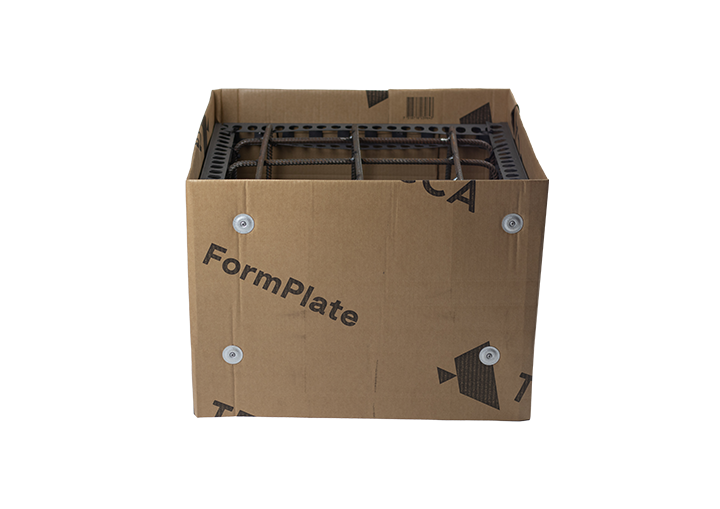

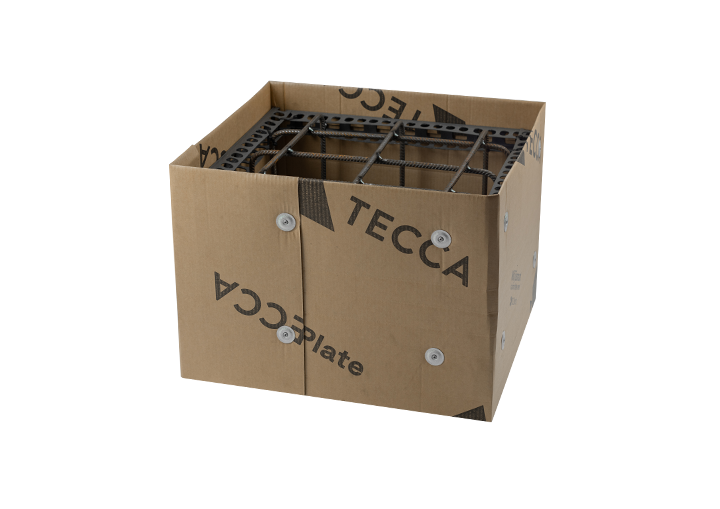

FormPlate is intended to be used for creating a mold when casting foundations. The corrugated cardboard is water-resistant due to the surface treatment and can remain outside for up to two weeks before being filled. The mold must be backfilled before casting.

Installation

FormPlate is easy to handle and install and can be easily cut or folded to the desired size. The recommended fastening is mounting screw (min 40 mm), farmer screw (min 40 mm) or Screw and washer (TECCA art.no 296015). The board is mounted with a maximum of 400 mm between the fastening points in the foundation form's spacer strip. The casting board is easy to remove after casting but can also be left as it is biodegradable and decomposes.

Important!

  • Mechanical fastening is done with assembly screws (min 40 mm), farmer screws (min 40 mm) or alternatively screws and washers (TECCA art. no. 296015).
  • The product should be stored indoors or outdoors protected from precipitation.
  • When the disc is correctly mounted in the reinforcement cage (folded down at the top), it can remain outside for up to two weeks before being used for casting.
  • The mold must be backfilled before casting.
  • The casting board made from bio-based material decomposes and decays when left in the ground after casting.
  • The disc should never be folded more than double.
  • Always start the assembly at a corner.

This product is evaluated and registered with the following entities:

    Articles

    • Name Art.nr Specification

    Technical specification

    • Material: Corrugated cardboard
    • Color: Brown
    • Length: 2400 mm
    • Width: 1200 mm
    • Thickness: 4 mm
    • Water Resistance: Slightly water-repellent
    • Recycled content: approx. 57%
    • Package Size: 240 pcs
