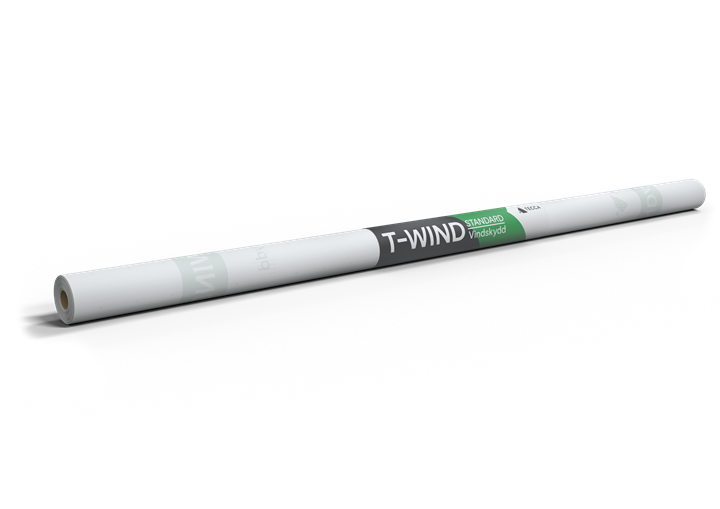

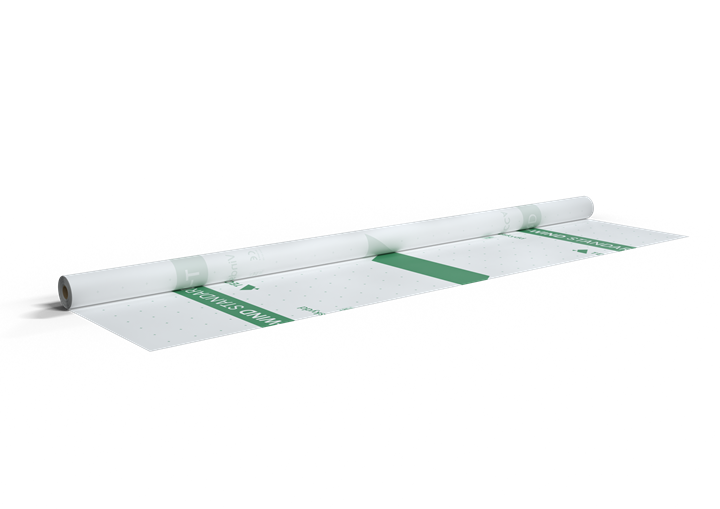

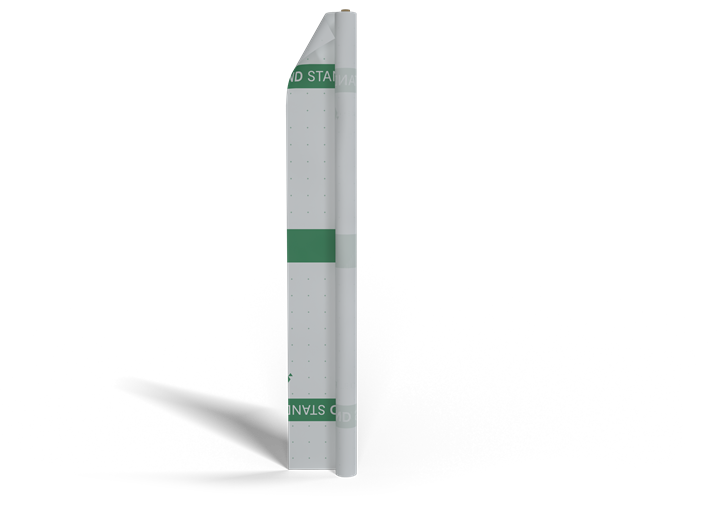

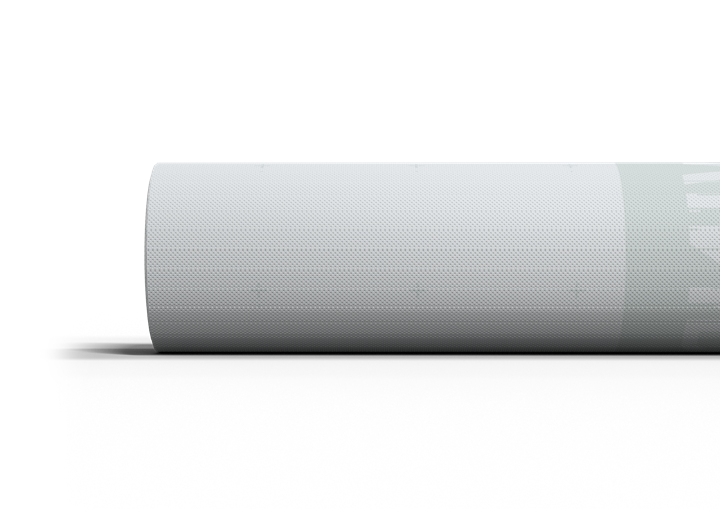

T-Wind Standard

T-Wind Standard is a modern wind barrier that forms the outer climate shield on the outside of the insulation in exterior wall constructions. The fabric is alkali and aging resistant with a diffusion-open polyethylene barrier protected by two polypropylene fiber fabrics (nonwoven). The fabric is elastic and soft to work with, and the white and light color ensures that light enters during the construction period and exposes the underlying structure.

Approved wind shelter according to IQD128
Aging resistant for at least 50 years
Highest water resistance W1
Tear-resistant

Find retailers High-resolution images

Design

Quantity

Unit

Price/unit

Price information

Buy

Product Information

Application Area

T-Wind Standard is primarily used as a wind barrier (external climate screen) in exterior walls but also in roofs with air gaps (parallel roofs) and as a bottom fabric in joists for crawl or pier foundations in thermally insulated buildings. T-Wind Standard contributes to an airtight external climate screen while allowing moisture to escape thanks to its diffusion-open properties.

Installation

The T-Wind Standard wind protection should be installed in a system with airtight joint aids such as sealing tape T-Flex Outdoor, Airtight-T, or sleeve T-Stos butyl for penetrations, etc. (see separate installation instructions).

Generally, the climate screen is attached to the outside of the insulated frame. The attachment should be done sparingly with corrosion-protected staples and then fixed with nailed battens (see separate installation instructions). The attachment can also be done with double-sided joint tape Duo/joint band T-Butyl along entire attachment lines where mechanical fastening is not possible. With this attachment method, the strength against, for example, wind impact may decrease. For airtight connections to concrete surfaces, double-sided joint tape T-Duo Concrete is recommended. For more complicated seals and adhesive needs, T-Fix adhesive and sealing compound can be used.

Important!

Splicing aids such as tape or splice bands must be approved for use in systems with T-Wind Standard.
Fasteners such as staples or nails must be corrosion-protected.
Storage and warehousing should always be done packaged or in a way that the wind protection fabric is protected from UV radiation and higher temperatures.
Poor weather conditions during installation are always a
risk factor for moisture damage.
When mounting with double-sided tape (Joint Tape T-Duo/Joint Band T-Butyl), the strength against, for example, wind impact may decrease.
T-Wind Standard has UV protection (sunlight equivalent to the construction period of 3 months, as a wind barrier. Thereafter shall
the wind barrier is covered by the facade. For lasting water tightness (W1) and adequate weather protection, under
During the summer months, UV exposure should be reduced to a maximum of 6 weeks

This product is part of TESHELL® and is covered by our warranty program. Read more here

Articles

Name Art.nr Specification

Documents

Specification

Technical specification

Material: Polypropylene and polyethylene
Weight (approx): 71 g/m²
Width/length: See respective article
Coverage area: Total area of the roll minus 200 mm overlap/connection
Vapor tightness: Ca 6000 s/m (Sd 0,15 m)
Aging resistance: At least 50 years
Waterproofness: Class W1
Fire reaction: Class E (with mineral wool insulation behind)

Assessments

This product is evaluated and registered with the following entities:

Registered in Basta's product database
Assessed in Sunda hus
Building product assessment level: 1.Accepted
Declared item in the Supply Chain Declaration Portal (SCDP) for New Buildings Gen. 4.
IQD 128
Registered in the Swan's house product portal
