We are updating the names of our expanding drive belts, which may result in some inaccuracies during a transition period.

T-Expand Pro

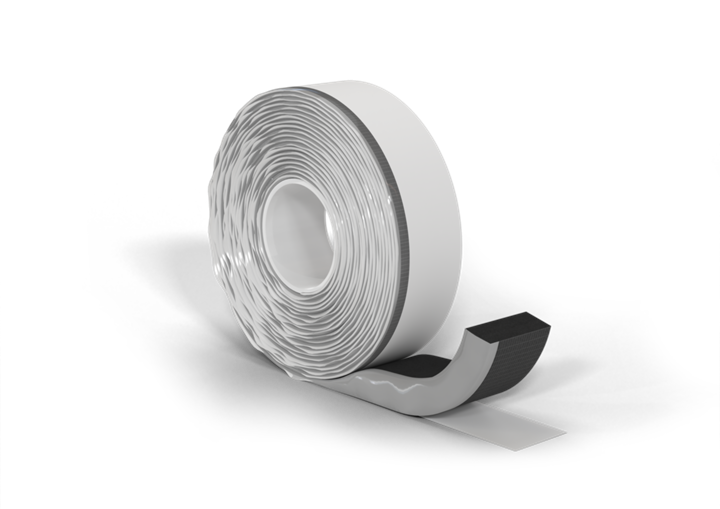

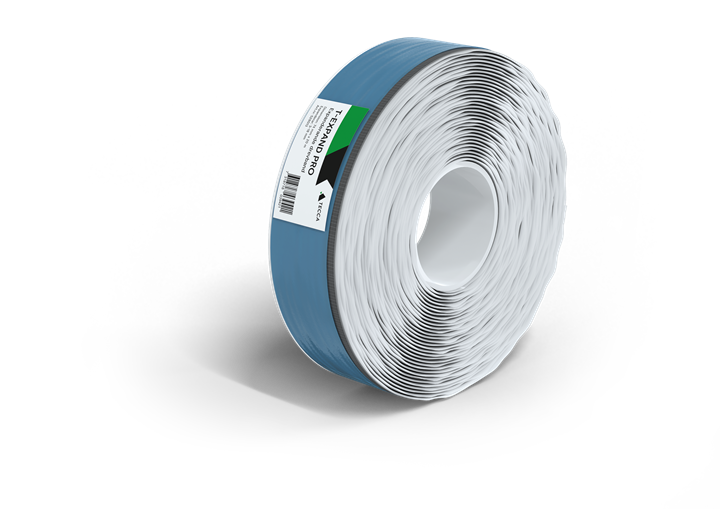

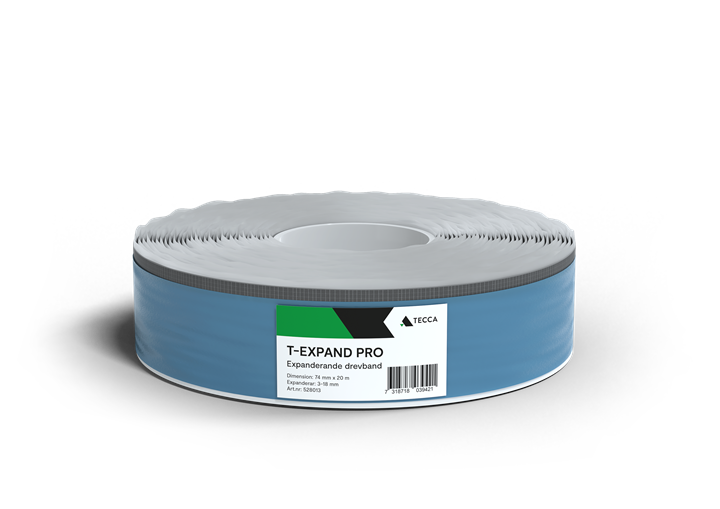

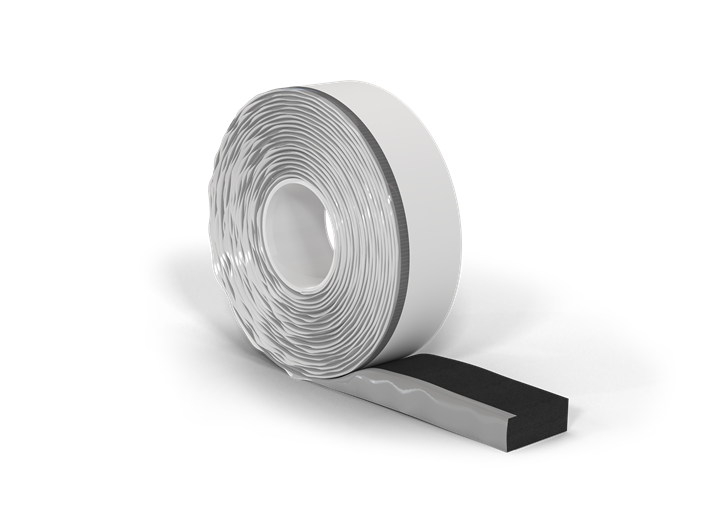

Pre-compressed drive band of impregnated PUR (Polyurethane) foam with edge (inside) equipped with polyethylene film (vapor barrier) and underside with adhesive strip for quick and easy installation. The exterior side is diffusion-open but protected against driving rain and waterproof up to 1000 Pa. The tightness ratio (diffusion) outside-inside is 1:50. The drive band's PUR foam is thermally and acoustically insulating.

High sound insulation and good thermal insulation
Thin non-expanded with easy one-step assembly
Sealing tape on the inside and outside is not required
Cost-saving as the product reduces the building's energy needs

Find retailers High-resolution images

Design

Quantity

Unit

Price/unit

Price information

Buy

Product Information

Application Area

For sealing and jointing during the installation of windows and doors, primarily in insulated constructions. The sealing tape has a diffusion-tight inside, a diffusion-open outside, a waterproof outside, absolute airtightness, good thermal insulation capability, and sound insulation.

Installation

The installation is carried out according to the installation instructions with adhesive tape around the frame on the window/door. After fixing the frame in the section, wall, or ceiling, the expanding foam tape self-expands so that the joint is completely sealed and tightened. For complete information, see the installation instructions.

Important!

The band with the expansion area should be selected based on the size of the caulking gap. The actual gap should be within the expansion area to achieve relevant properties!
The window/door frame must be clean and dry when applying the sealing strip.
Should be stored dry in a sealed package and protected from sunlight.
Storage temperature +1°C to +20°C.
After using a started roll, it should be promptly resealed with sealing tape for future use.
In colder weather, the expansion time can be significantly extended. Up to several days in some cases. Elevated temperature or gentle heating accelerates the process.

This product is part of TESHELL® and is covered by our warranty program. Read more here

Articles

Name Art.nr Specification

Documents

Specification

Technical specification

Installation: Self-adhesive
Expansion Range: 3-18 / 5-30 mm (joint/gap measurement)
Width: 54 mm, 74 mm
Vapor transmission resistance: Inside approx. ≥ 1000x103 s/m Outside approx. ≤ 20x103 s/m
Driving rain density: ≥ 1000 Pa (DIN18542)
Air Permeability: Completely sealed
Sound insulation: >45 dB (10 mm fog, 74 mm)
Thermal conductivity: ≤ 0,046 W/m °C
U-value: 0,6 W/m² °C (74 mm) 0,8 W/m² °C (54 mm)
Temperature range lowest: -30 °C
Temperature range highest: +80 °C

Assessments

This product is evaluated and registered with the following entities:

Registered in Basta's product database
Assessed in Sunda hus
Building product assessment level: 1.Accepted
Declared item in the Supply Chain Declaration Portal (SCDP) for New Buildings Gen. 4.
Registered in the Swan's house product portal
