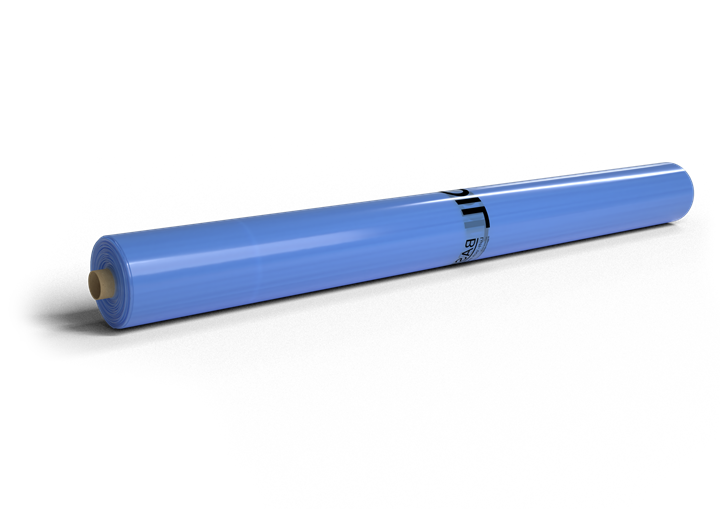

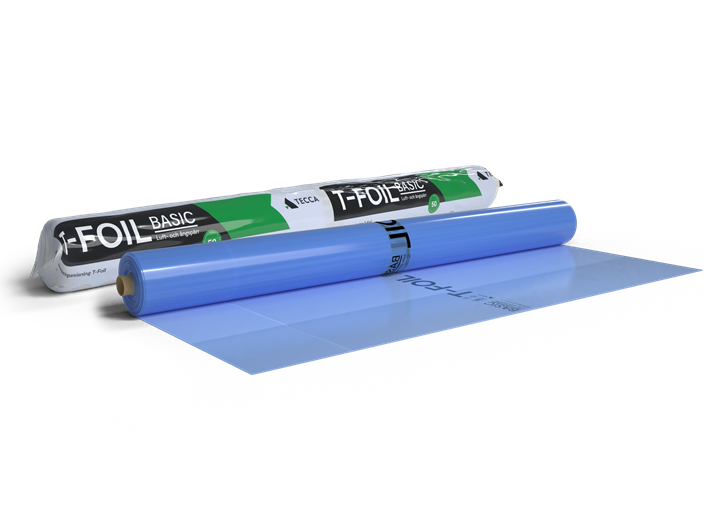

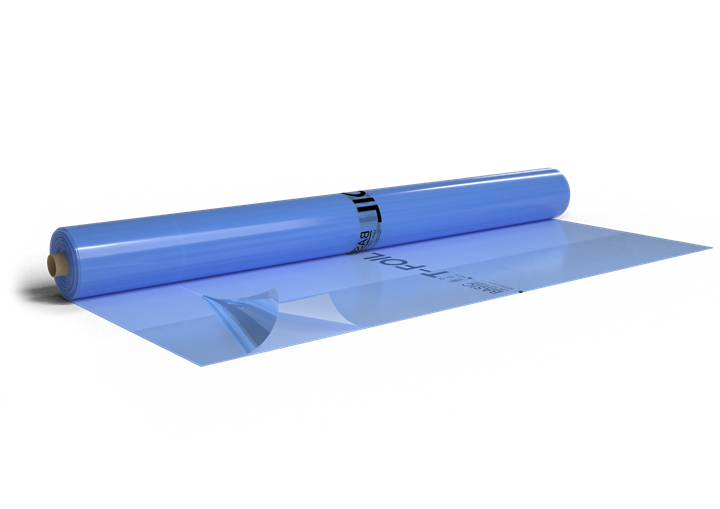

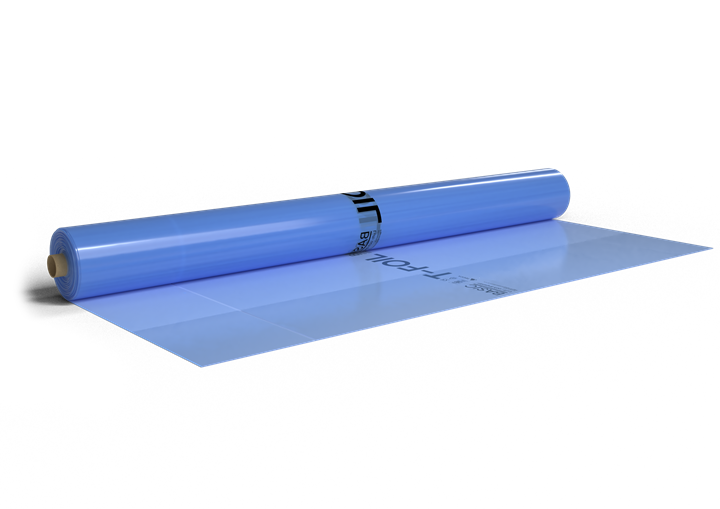

T-Foil Basic
T-Foil Basic är en luft- och ångspärr med god diffusionstäthet och styrka. Produkten är tillverkad av Polyeten som är värme-, UV- och alkaliebeständig. Dessutom är folien även helt återvinningsbar i kretsloppet vid monteringsspill samt vid en framtida rivning av byggnaden.
At least 50 years of aging resistance
Easy to assemble
More cost-effective alternative
Contributes to increased insulation capability
Possibility for faster drying
Application Area

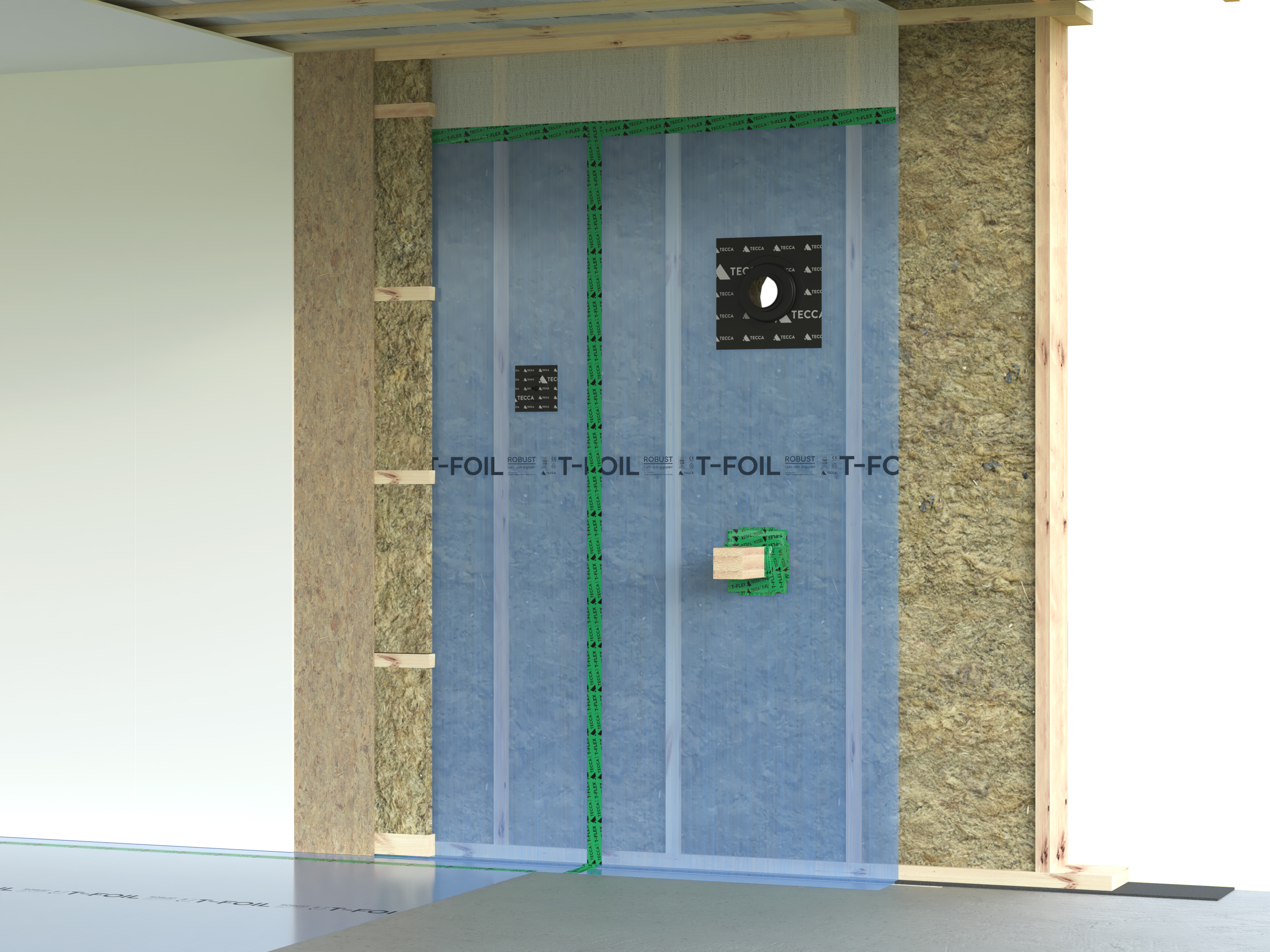

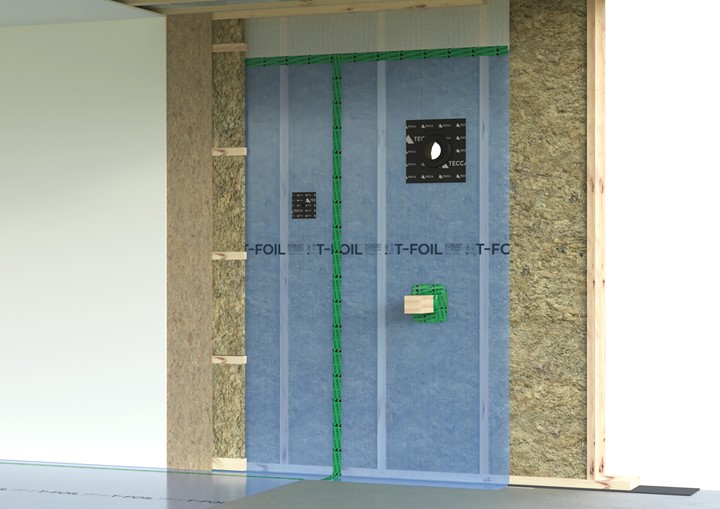

T-Foil Basic is primarily used as an air and vapor barrier (internal climate screen) in the exterior walls, roofs, and floors of thermally insulated buildings. It contributes to an airtight and moisture-protected construction, preventing harmful moisture and vapor from being transported to sensitive building parts and minimizing energy losses in heated spaces.
Installation

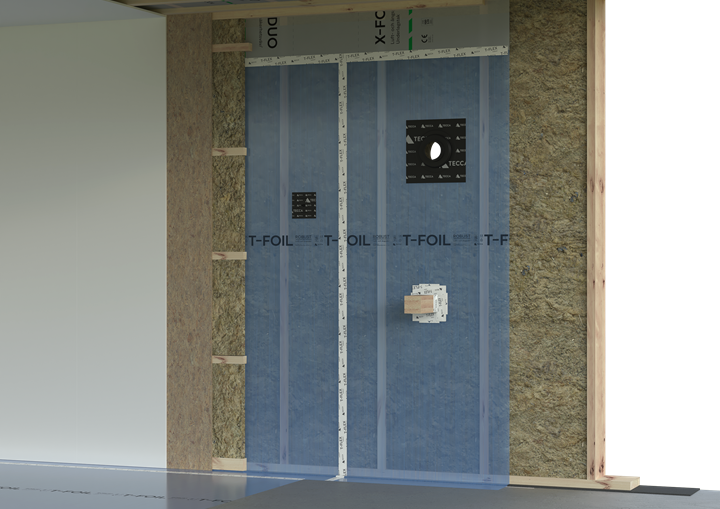

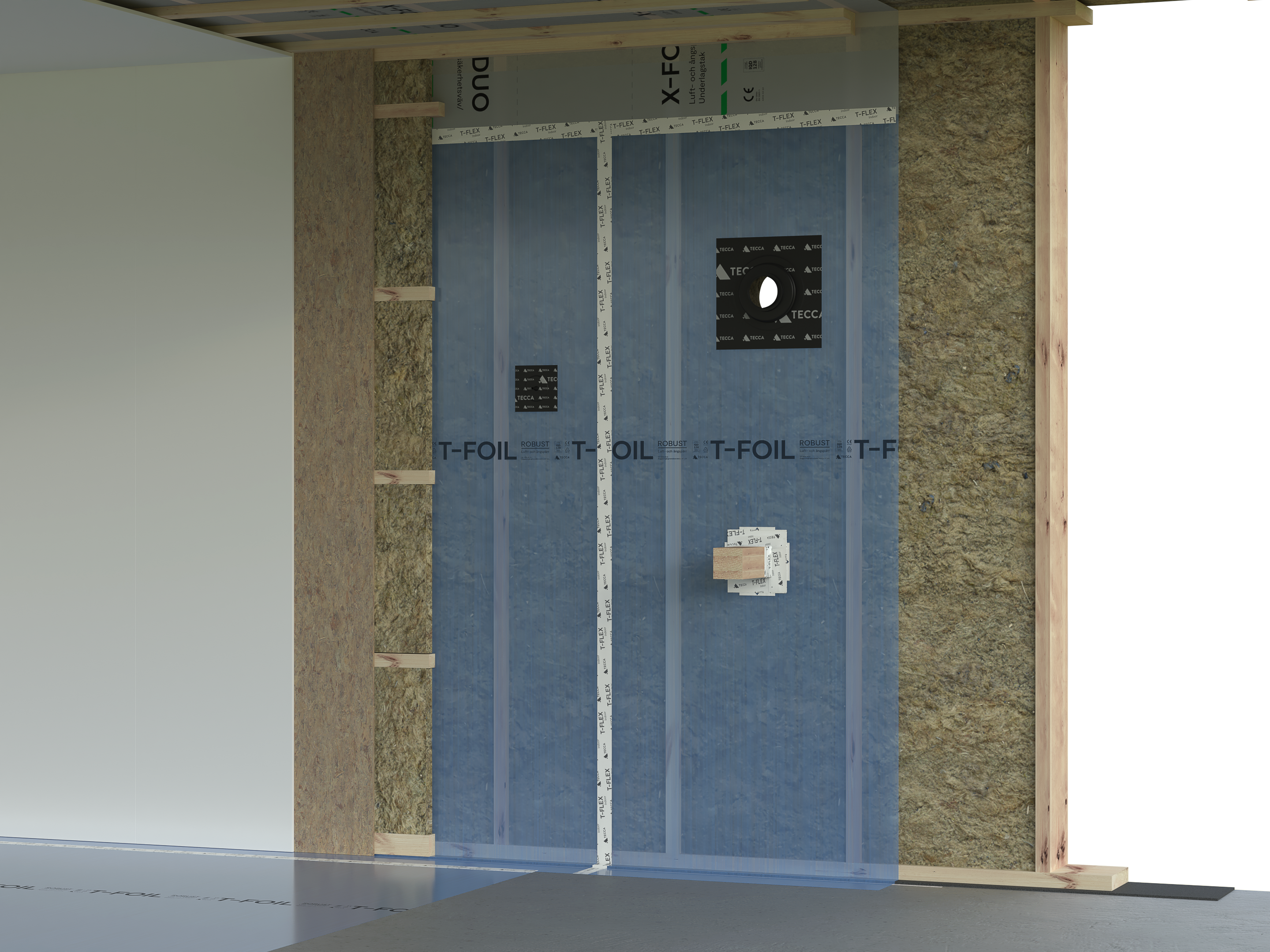

T-Foil Basic air and vapor barrier should be installed in a system with airtight joint aids such as T-Flex sealing tape or T-Stos butyl for pass-throughs, etc. See separate installation instructions!
Generellt fästs klimatskärmen på insidan närmast den uppvärmda sidan av den isolerade stommen.
The installation should, however, be offset into the insulation by a maximum of 1/3 of the total insulation thickness. This part acts as an insulated zone inside the climate shield and can be used as an installation space for electrical installations, etc., or serve as a buffer space for mechanical fastenings from the inside
the interior. This reduces air leakage in a completed building
Important!
- Store and keep packaged/protected from sunlight (UV radiation) or consistently higher temperatures (>35°C). The film has freely exposed (not built-in) UV protection that corresponds to the construction time (<6 months).
- If there are any doubts regarding the use of the climate screen and its properties, consult a building expert.
Environmental Assessments
Building materials assessed for a better working environment.
Assessed by Sunda Hus for sustainable construction.
Assessed by the Building Material Assessment for sustainable and non-toxic construction.
Declared item in Supply Chain Declaration Portal (SCDP) for New buildings gen. 4.
Registered in the Swan's house product portal
Quality control, documentation, and certifications
This product is evaluated and registered with the following entities.
Articles
- Name Art.nr Specification
Technical specification
- Material: LD-Polyethylene (LD-PE)
- Surface weight: 103 g/m²
- Width: See respective article
- Length: See respective article
- Coverage area: The total area of the roll minus 200 mm overlap/connection.
- Vapor transmission resistance: 2000 x 10³ s/m (sd= 53 m)
- Waterproofness: Dense
- Aging resistance: At least 50 years
Accessories for T-Foil Basic
